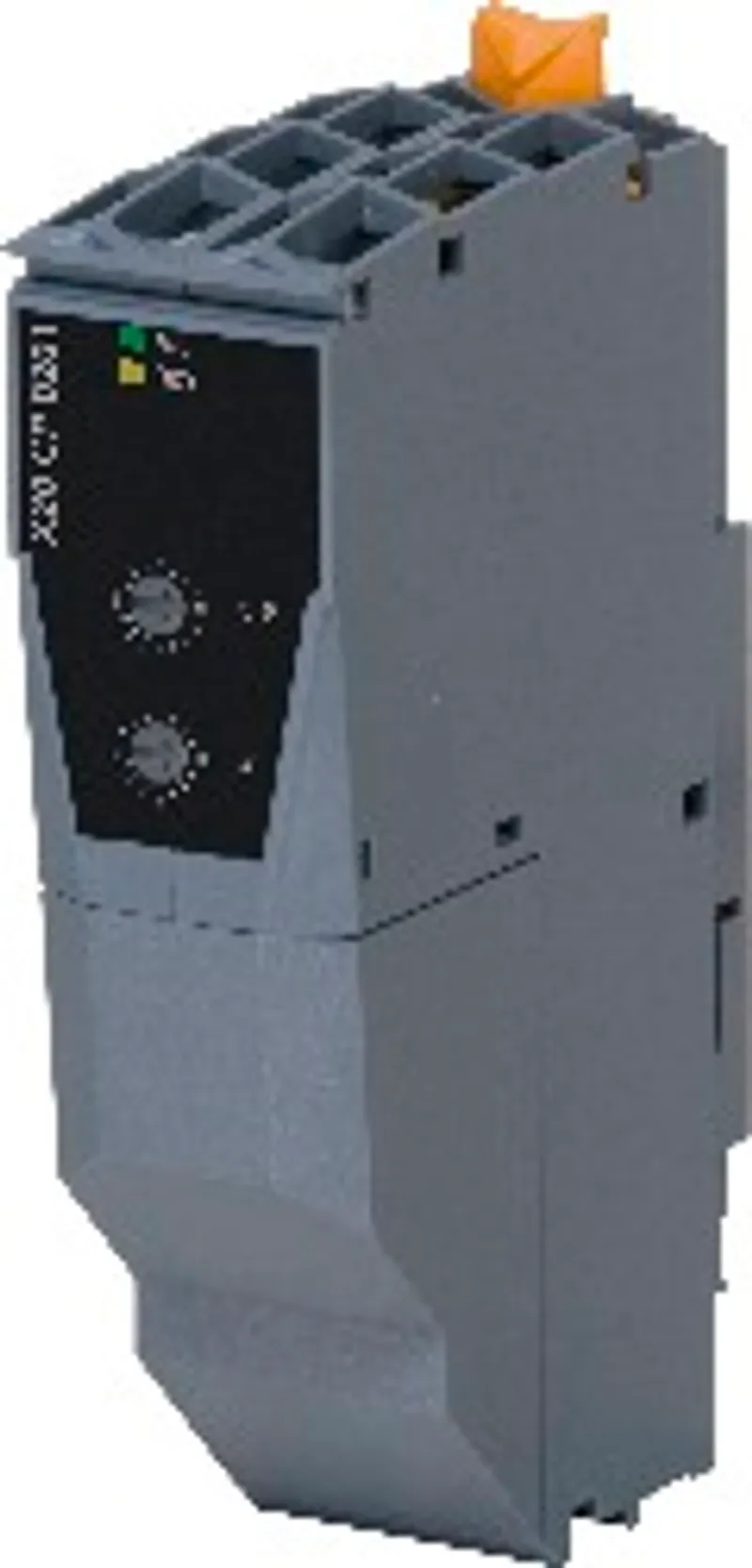

B&R X20CP0201

System module, CPU

MPN: X20CP0201

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20CP0201?

Embedded µP16 with additional I/O processor

100 kB User SRAM

1 MB User FlashPROM

Only 37.5 mm wide

Battery-free

The X20CP0201 is the entry-level X20 Compact CPU. This CPU is used when a cycle time of 2 ms (typ. 5 ms) is sufficient and the cost/performance ratio is a key factor.

Going without an onboard Ethernet interface additionally reduces costs for the X20CP0201.

Specifications

Short description

System module

CPU

General information

Diagnostics – CPU function	Yes, using LED status indicator
Support – ACOPOS support	Limited (User PROM) via CAN bus
Support – Visual Components support	Limited (User PROM)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x22A2
Status indicators	CPU function
Temperature sensor	No
Power consumption	2.2 W
Additional power dissipation caused by actuators (resistive) [W]	-

Controller

Processor – Type	Embedded µP 16
Permanent variables – Retention time	>10 years
Permanent variables – Memory	2.75 kB FRAM (note: This FRAM stores its contents ferroelectrically. A backup battery is therefore no longer required.)
Standard memory – User PROM	1 MB FlashPROM
Standard memory – User RAM	100 kB SRAM (note: Not backed up.)
Real-time clock	Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C (note: The real-time clock is backed up for approx. 1000 hours by a gold foil capacitor. The gold foil capacitor is completely charged after 18 continuous hours of operation.)
Integrated I/O processor	Processes I/O data points in the background
Backup battery	No
Shortest task class cycle time	4 ms
Typical instruction cycle time	0.8 µs

Interfaces

On base module – X20BB22	Compact CPU base module with integrated RS232 interface (note: For technical data, see the data sheet for power supply module X20PS9500.)
On base module – X20BB27	Compact CPU base module with integrated RS232 and CAN interface (note: For technical data, see the data sheet for power supply module X20PS9502.)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9500 or X20PS9502 separately.; Order 1x Compact CPU base X20BB22 or X20BB27 separately.
Pitch	37.5 +0.2 mm (note: Pitch is based on the width of Compact CPU base X20BB22 or X20BB27. Power supply module X20PS9500 or X20PS9502 is always required for the CPU.)

Accessories

Required accessories (order separately)

X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20PS9502	Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Cost-effective power supply module for small X20 system…
X20PS9500	Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Electrical isolation of supply and CPU / X2X Link power…
X20BB27	Undefined — Base for all X20 Compact CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is the base…
X20BB22	Undefined — Base for all X20 Compact CPUs; RS232 connection The bus module is the base for all X20 Compact CPUs. The left and right end cover plates ar…
