Plug-in modules Parts
Compare Plug-in modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Certifications – CRA (Cyber Resilience Act) | Temperature – Nominal | Dimensions – Width | Weight | Quantity |
|---|---|---|---|---|---|

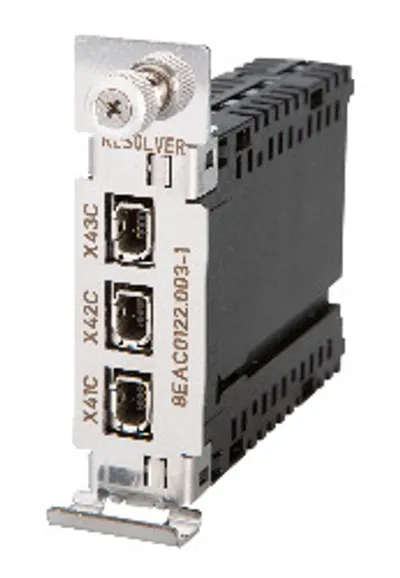

| 8EAC0122.003-1 | Not applicable | 5 to 40°C | 24 mm | 127 g | — |

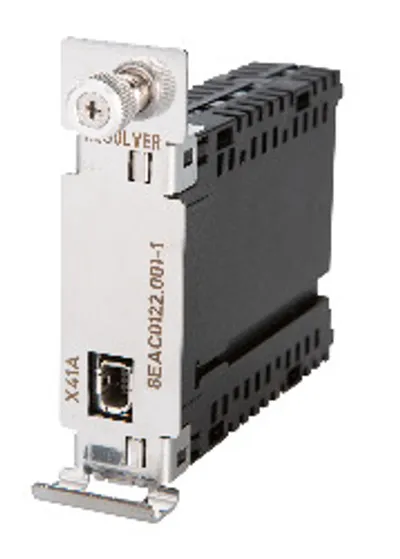

| 8EAC0122.001-1 | Not applicable | 5 to 40°C | 24 mm | 123 g | — |

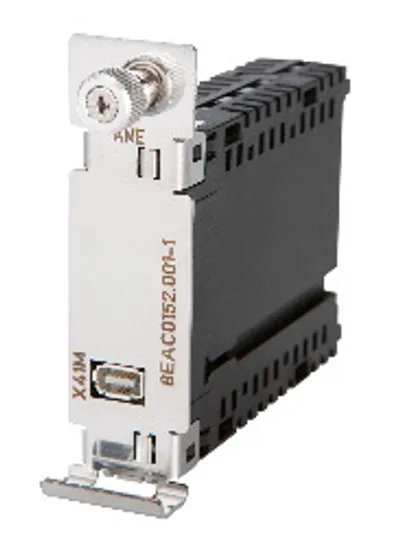

| 8EAC0152.001-1 | In preparation | 5 to 40°C | 82 mm | 64 g | 1 |

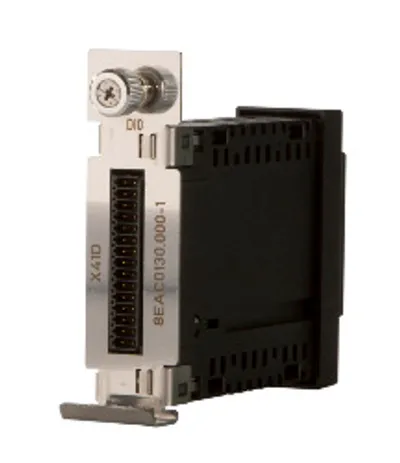

| 8EAC0130.000-1 | In preparation | 5 to 40°C | 82 mm | 79 g | Max. 10 |

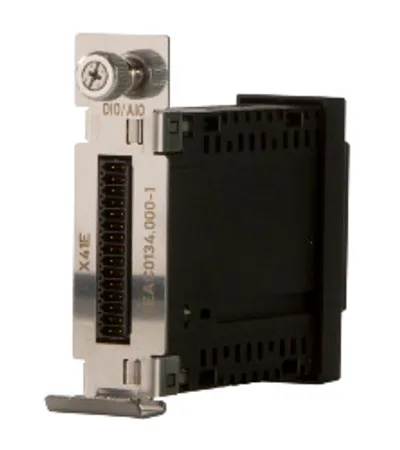

| 8EAC0134.000-1 | In preparation | 5 to 40°C | 82 mm | 79 g | Max. 10 |
| 8EAC0152.003-1 | In preparation | 5 to 40°C | 82 mm | 72 g | 3 |

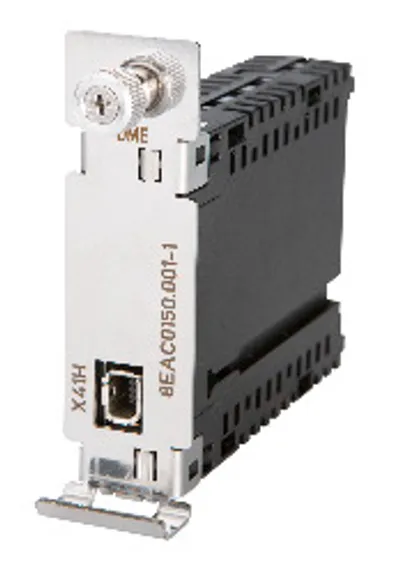

| 8EAC0150.001-1 | In preparation | -25 to 55°C | — | — | 1 |

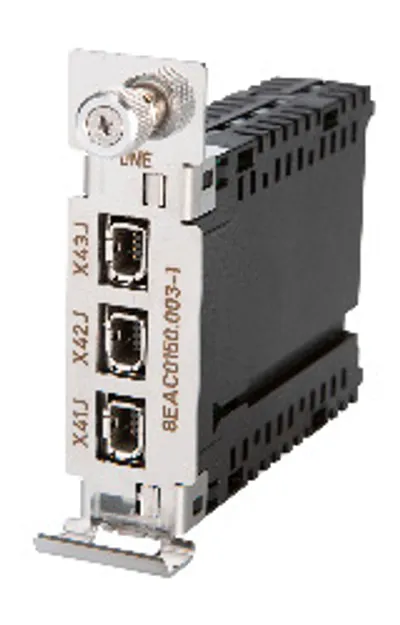

| 8EAC0150.003-1 | In preparation | -25 to 55°C | — | — | 3 |

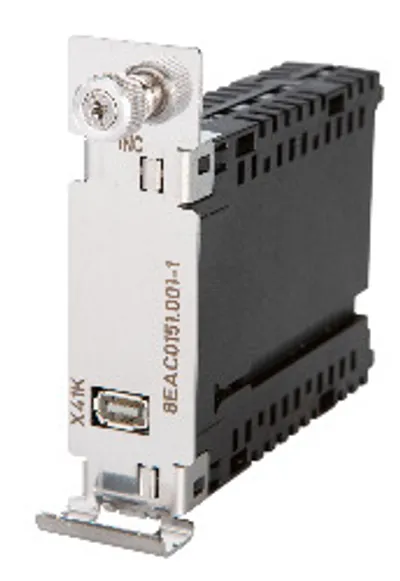

| 8EAC0151.001-1 | In preparation | 5 to 40°C | 82 mm | 72 g | — |

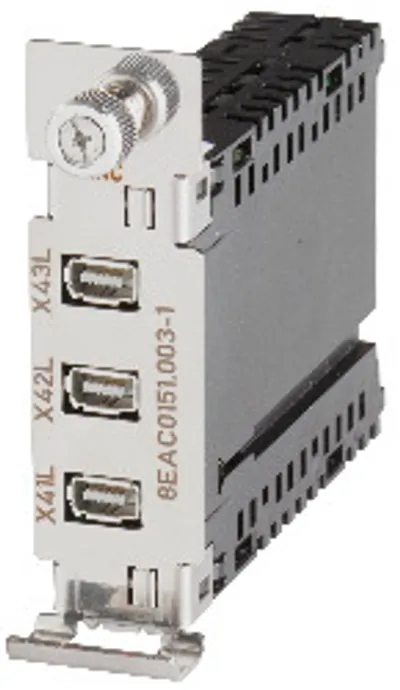

| 8EAC0151.003-1 | In preparation | 5 to 40°C | 82 mm | 72 g | — |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOS P3 plug-in module |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
