What is the B&R 8EAC0134.000-1?

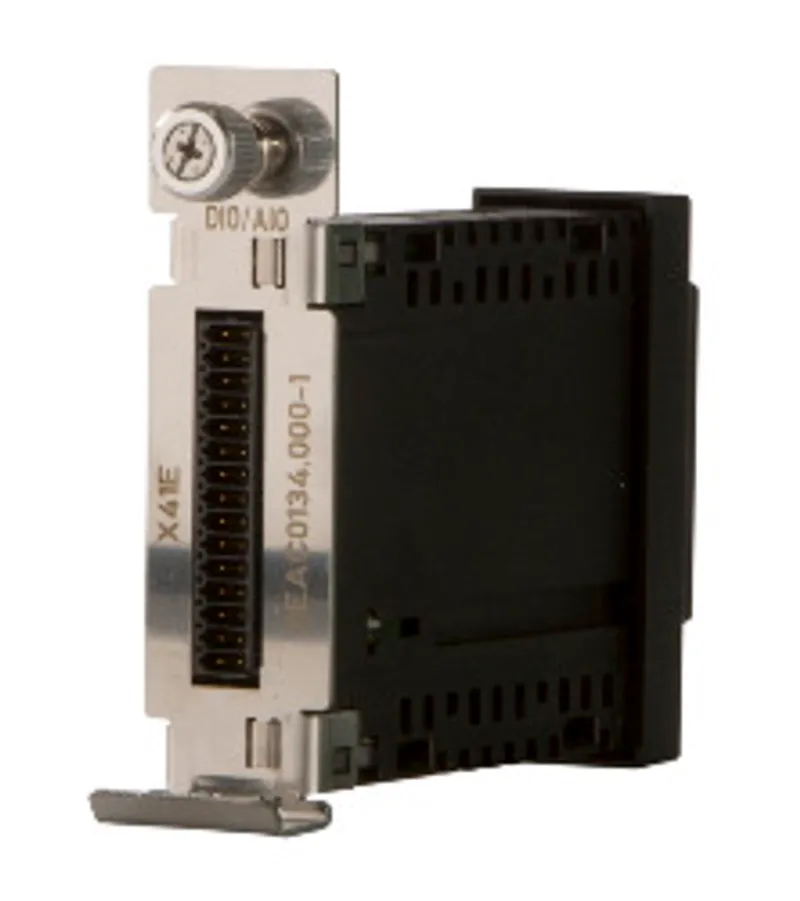

ACOPOS P3 plug-in module, 8 digital I/O 24 V (4x 400 mA, 4x 100 mA) individually configurable as inputs or outputs, 2 digital I/O 24 V 2 A configurable in pairs as inputs or outputs, 3 analog differential inputs, 14-bit, 3 analog outputs, 12-bit, individually configurable as current or voltages outputs, order terminal block 8TB0230.221A-00 separately!

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS P3 plug-in module
B&R ID code	0xF038
Slot	Slot 1
Power consumption	Typ. 3 W

Inputs/Outputs

Module-side connection	30-pin multipoint connector
Status indicators	None
Configuration of digital inputs/outputs	Input/Output 1 - 8: Individually configurable as inputs or outputs; Input/Output 9 - 10: Configurable in pairs as inputs or outputs
Configuration of analog outputs	Individually configurable as current or voltage outputs

Incremental encoders

Inputs – Input 1	Channel A
Inputs – Input 2	Channel B
Inputs – Input 3	Reference pulse R
Counter size	16-bit
Input frequency	Max. 125 kHz
Evaluation	4x
Signal form	Rectangle
Encoder monitoring	Yes
Counter frequency	Max. 500 kHz
Reference frequency	Max. 125 kHz
Distance between edges	Min. 0.64 µs

Power supply

Power supply – Minimum	18 VDC
Power supply – Nominal	24 VDC
Power supply – Maximum	30 VDC
Reverse polarity protection	Yes

Digital inputs

Input filter – Hardware	Inputs 1 - 8: No filter; Inputs 9 - 10: Yes
Input filter – Software	5.12 µs (default); Between 0 and 20.97 ms
Switching threshold – Low	≤5 V
Switching threshold – High	≥15 V
Input voltage – Maximum	Supply voltage
Electrical isolation – Channel - ACOPOS	Yes
Electrical isolation – Channel - Channel	No
Switching delay – Digital input	Inputs 1 - 8: Approx. 1 µs; Inputs 9 - 10: Typ. 34 µs (note: When controlled by a push output or normally closed contact, the switch-off time is extended depending on the length of the power supply cable since the line capacity is only discharged by the input current.)
Quantity	Max. 10
Input current at 24 VDC	Inputs 1 - 8: Typ. 2.5 mA; Inputs 9 - 10: Typ. 3 mA
Connection type	1-wire connections
Circuit	Sink
Input frequency	Inputs 1 - 8: Max. 125 kHz; Inputs 9 - 10: Max. 10 kHz (note: The maximum input frequency depends on the selected software function.)

Event counters

Inputs – Input 1	Counter 1
Inputs – Input 2	Counter 2
Signal form	Square wave pulse
Input frequency	Max. 125 kHz
Counter size	16-bit

Trigger inputsDigital inputs".">

Quantity	4
Channels	Digital I/O 5 - 8

Analog inputs

Electrical isolation – Input - ACOPOS	Yes
Electrical isolation – Input - Input	No
Input signal – Nominal	-10 to +10 V
Quantity	3
Converter resolution	14-bit (note: The smallest measurable voltage change (voltage quantization) is typically 1.526 mV.)
Open-circuit detection	Yes
Variant	Differential input
Data output	Synchronous to 400 µs cycle of the servo drive
Input filter	Hardware: Third-order low-pass filter; Software: Configurable high-performance filter (note: Combination of slew rate and linear-phase low-pass filter. Configuration takes place in Automation Studio.)
Max. gain drift	±800 µV/°C
Max. offset drift	±300 µV/°C
Additional EMI noise	±0.5% (note: During operation without high-performance filter.)
Common-mode range	-12 to +12 V (note: Voltage of terminals + and - against GND)
Common-mode rejection	Up to 1 kHz: 80 dB; Starting at 1 kHz: -20 dB/dec
Basic accuracy	±0.05% (note: 25°C at the factory.)

Digital outputs

Electrical isolation – Output - ACOPOS	Yes
Electrical isolation – Output - Output	No
Switching voltage – Nominal	≤Supply voltage
Protection – Short-circuit proof	Yes
Protection – Overload-proof	Yes
Quantity	Max. 10
Variant	Output 1 - 4: Push-pull transistor outputs; Output 5 - 8: High-side transistor outputs; Output 9 - 10: High-side transistor outputs
Connection type	1-wire connections
Readable outputs	Yes
Continuous current	Outputs 1 - 4: Max. 100 mA; Outputs 5 - 8: Max. 400 mA; Outputs 9 - 10: Max. 2 A
Peak short-circuit current	Outputs 1 - 8: Approx. 10 A, 0.5 µs; Outputs 9 -10: Max. 90 A, 800 µs
Switching frequency (resistive load)	Outputs 1 - 4: Max. 125 kHz; Outputs 5 - 8: Max. 10 kHz; Outputs 9 - 10: Max. 100 Hz (note: Outputs 1 to 8: The maximum switching frequency depends on the selected software function.)
Switching delay	Outputs 1 - 8: <3 µs; Outputs 9 - 10: 50 to 150 µs (note: Without and with resistive load at continuous current.)

Encoder emulation

Outputs – Output 1	Channel A
Outputs – Output 2	Channel B
Outputs – Output 3	Reference pulse R
Switching frequency	Max. 125 kHz

Analog outputs

Basic accuracy – Voltage	±0.1% (note: 25°C at the factory.)
Basic accuracy – Current	±0.1% (note: 25°C at the factory.)
Electrical isolation – Output - ACOPOS	Yes
Electrical isolation – Output - Output	No
Quantity	3
Variant	±10 V or 0 to 20 mA (switchable)
Converter resolution	12-bit (note: The smallest configurable voltage change (voltage quantization) is typically 5.371 mV. The smallest configurable current change (current quantization) is typically 5.86 µA.)
Settling time on output change	Voltage output 0 - 10 V: Max. 200 µs; Current output 0 - 20 mA: Max. 300 µs (note: With resistive load.)
Output protection	Voltage output: Short-circuit proof typ. 30 mA
Load per channel	Voltage output: Load ≥ 1 kΩ; Current output: Load ≤ 600 Ω
Max. gain drift	Voltage output: ±66 µV/°C; Current output: ±360 nA/°C
Max. offset drift	Voltage output: ±110 µV/°C; Current output: ±480 nA/°C (offset at 0 LSB: typ. 10 µA)

Support

Motion system – mapp Motion	5.08.2 and higher
Motion system – ACP10/ARNC0	5.08.2 and higher

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Width	82 mm
Dimensions – Height	24 mm
Dimensions – Depth	103 mm
Weight	79 g

Accessories

Required accessories (order separately)

8TB0230.221A-00

Terminal blocks — 30-pin push-in terminal block, 2-row, pitch: 2.54 mm, label 1: Numbered consecutively
