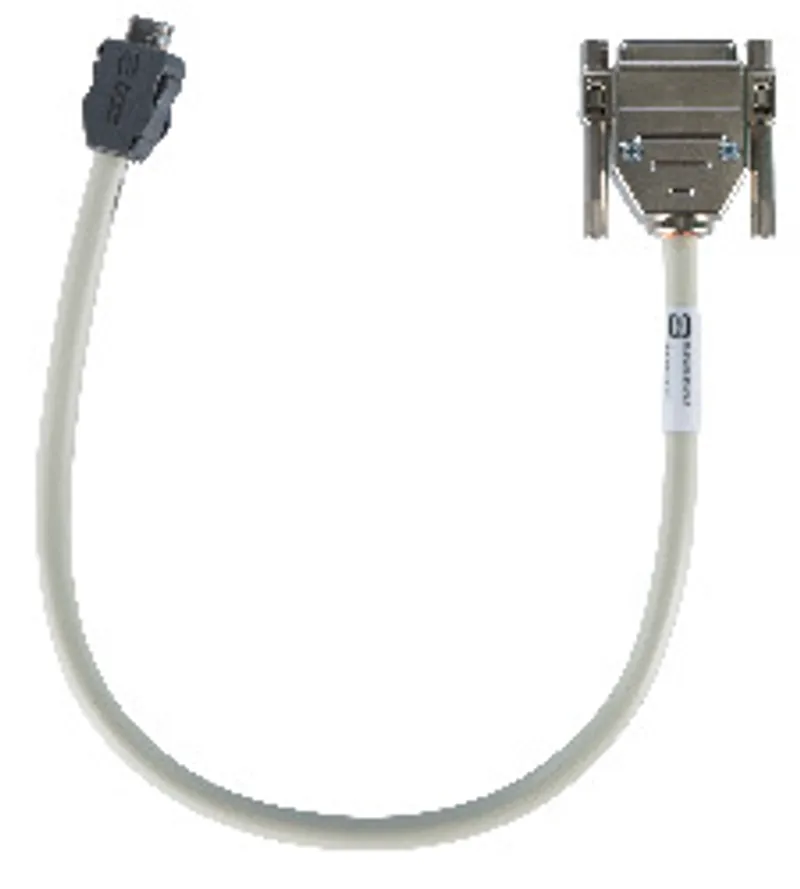

B&R 8ECG00X4.3151D-0
ACOPOS P3 adapter cable, length 0.4 m
- MPN
- 8ECG00X4.3151D-0
- Category
- Adapter cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8ECG00X4.3151D-0?
ACOPOS P3 adapter cable, length 0.4 m, for analog multi-encoder interfaces and incremental encoder interfaces, 5x 2x 0.14 mm², 10-pin male IX connector to 15-pin female DSUB
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Cable cross section | 5 x 2 x 0.14 mm² |
Cable construction
| Outer jacket – Material | PVC |
| Outer jacket – Color | Gray (RAL 7032) |
| Cable shield | Braided shield made of tinned copper wires, optical coverage ≥85% |
Connector
| Type | 15-pin female DSUB connector |
| Mating cycles | <500 |
| Additional connectors | 10-pin male IX connector; Mating cycles: <1500; Degree of protection per EN 60529: IP30 when connected |
| Degree of protection per EN 60529 | IP20 when connected |
Electrical properties
| Conductor resistance – Signal line | ≤122 Ω/km |
| Insulation resistance | >200 MΩ*km |
Ambient conditions
| Temperature – Moving | -5°C to +80°C |
| Temperature – Static | -30°C to +80°C |
Mechanical properties
| Dimensions – Length | 0.4 m (+ 1%) |
| Dimensions – Diameter | 6 mm ±0.8 mm |
| Bend radius – Single bend | ≥34 mm |
| Bend radius – Moving | ≥68 mm |
| Weight | 63 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8ECG00X4.3151D-0: frequently asked questions
When can 8ECG00X4.3151D-0 be shipped?
8ECG00X4.3151D-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8ECG00X4.3151D-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8ECG00X4.3151D-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8ECG00X4.3151D-0, subject to availability and destination.
