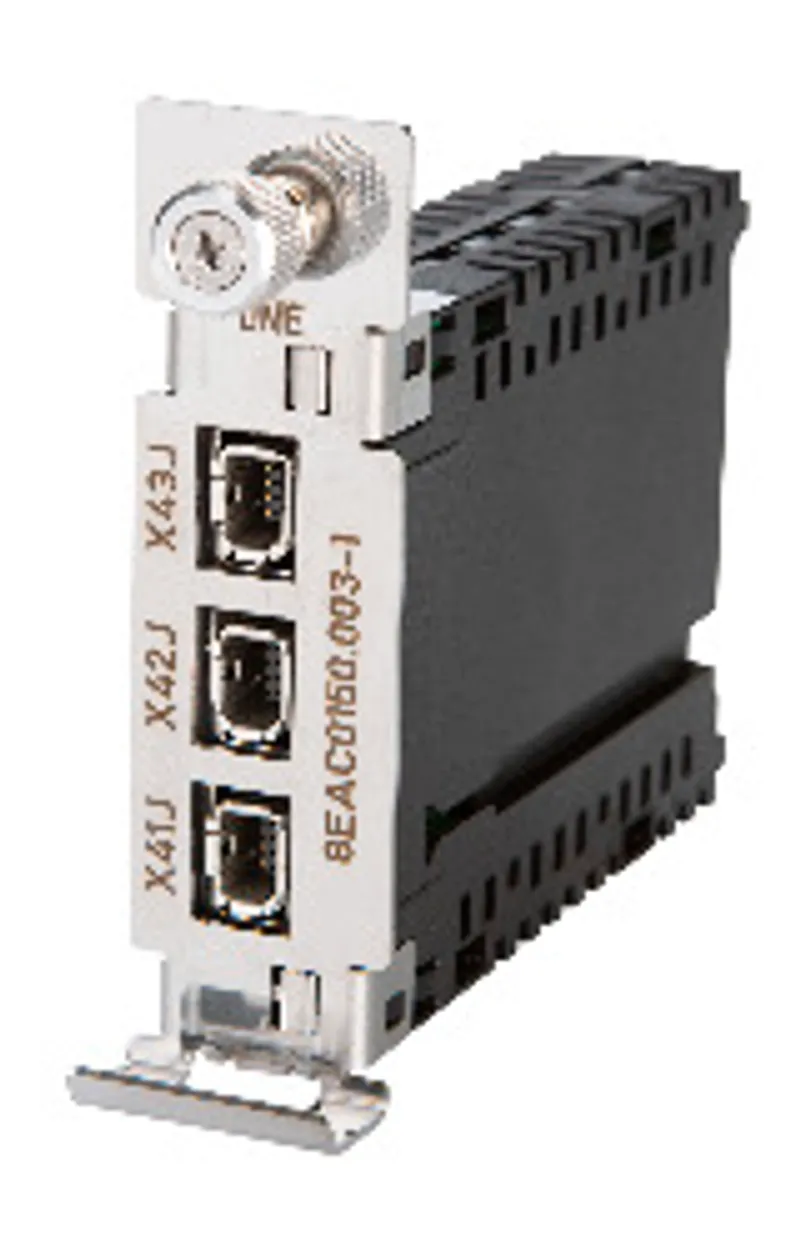

B&R 8EAC0150.003-1
ACOPOS P3 plug-in module, 3 digital multi-encoder interfaces
- MPN
- 8EAC0150.003-1
- Category
- Plug-in modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8EAC0150.003-1?
ACOPOS P3 plug-in module, 3 digital multi-encoder interfaces
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Short description | 3 digital multi-encoder interfaces in one module |
| Module type | ACOPOS P3 plug-in module |
| B&R ID code | 0xF075 |
| Slot | Slot 1 |
| Max. power consumption | P[W] = 15 V * (I Encoder1 [A] + I Encoder2 [A] + I Encoder3 [A]) + 3 W; Max. 16.5 W |
Encoder interfaces
| Electrical isolation – Encoder - ACOPOS P3 | No |
| Encoder power supply – Short-circuit proof | Yes |
| Encoder power supply – Overload-proof | Yes |
| Encoder power supply – Output voltage | Configurable; Typ. 11.45 V ±0.1 V / 5.2 V ±0.1 V |
| Encoder power supply – Load capacity | Max. 300 mA (HIPERFACE DSL: Max. 200 mA) |
| Encoder power supply – Sense lines | 2, compensation of max. 2x 0.7 V |
| Synchronous serial interface – Minimum | 2.0 V |
| Synchronous serial interface – Maximum | 6.0 V |
| Synchronous serial interface – Signal transmission | RS485 (note: Except encoder type HIPERFACE DSL.) |
| Synchronous serial interface – Data transfer rate | Depends on the configured encoder type |
| Quantity | 3 |
| Type | Digital multi-encoder interface, configurable (note: The encoder type is not predefined from the factory. The encoder type necessary in each case must be configured in Automation Studio.) |
| Connections | 8-pin female Mini I/O connector |
| Status indicators | None (note: The direction of rotation of the encoder can be displayed on the 8EAD0000.000-1 display module.) |
| Max. encoder cable length | 75 m ; Depends on the cross section of the power supply wires of the encoder cable |
Support
| Motion system – mapp Motion | 5.1.0 and higher |
| Motion system – ACP10/ARNC0 | 5.01.0 and higher |
Ambient conditions
| Temperature – Nominal | -25 to 55°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Accessories
Optional accessories (1)
| 8ECF00X4.1241C-0 | Adapter cables — ACOPOS P3 adapter cable for digital encoder interfaces; Makes it possible to connect an encoder cable with 9-pin DSUB connector to a digita… |
