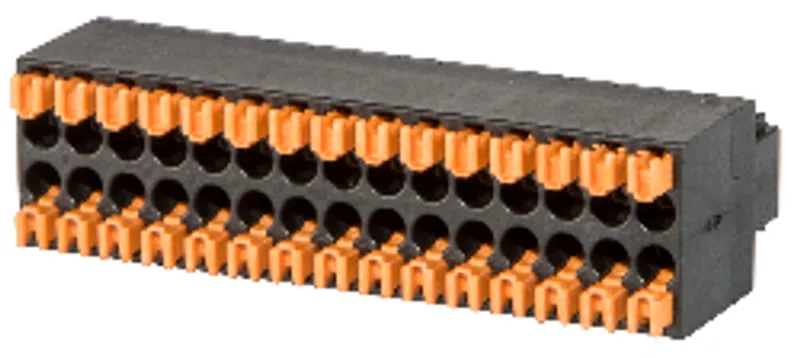

B&R 8TB0230.221A-00
30-pin push-in terminal block, 2-row, pitch: 2.54 mm
- MPN
- 8TB0230.221A-00
- Category
- Terminals
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8TB0230.221A-00?
30-pin push-in terminal block, 2-row, pitch: 2.54 mm, label 1: Numbered consecutively
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Short description | Push-in terminal block, 2-row, for 8EIXXXXXXXX.XXXX-1 servo drives |
Terminal block
| Connection cross section – AWG wire | 26 to 20 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.14 to 0.25 mm² |
| Connection cross section – Single-wire | 0.14 to 0.5 mm² |
| Connection cross section – Fine-stranded wires | 0.14 to 0.5 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 0.34 mm² |
| Note | Label 1: Numbered consecutively |
| Number of pins | 30 |
| Type of terminal block | Push-in spring connector |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 2.5 mm |
| Wire stripping length | 7 mm |
Electrical properties
| Nominal voltage | 150 to 50 V (UL) |
| Nominal current | 6 A (UL) |
Mechanical properties
| Dimensions – Width | 38.6 mm |
| Dimensions – Height | 10.5 mm |
| Dimensions – Depth | 15.9 mm |
| Weight | 7.9 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (2)
8TB0230.221A-00: frequently asked questions
When can 8TB0230.221A-00 be shipped?
8TB0230.221A-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB0230.221A-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB0230.221A-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB0230.221A-00, subject to availability and destination.
