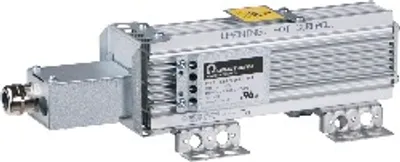

B&R 8B0W0045H000.001-1

Braking resistor

MPN: 8B0W0045H000.001-1
Category: Braking resistors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8B0W0045H000.001-1?

Compact design

High peak load capacity

Intrinsically safe

IP65 protection

Optimally suited for B&R drive systems

Braking resistor, 450 W, 50 R, IP65, terminals

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	UL E208678; Power circuit and motor-mounted apparatus - Component
Certifications – KC	Yes
RoHS-compliant	Yes
Cooling and mounting type	Wall mounting

Motor holding brake connection

Terminal connection cross section – With wire end sleeve	1.5 to 10 mm²
Terminal connection cross section – UL/C-UL-US	24 to 6 AWG
Terminal connection cross section – CSA	22 to 6 AWG

Braking resistor

Continuous power depending on mounting orientation – Standing horizontally	388 W
Continuous power depending on mounting orientation – Hanging vertically	424 W
Variant – RB1, RB2	Terminals with tension spring technology
Variant – PE	M4 threaded bolt
Variant – Shield connection	Yes, on the connection box via high-strength cable gland
Reduction of continuous power depending on ambient temperature	7.5 W/K (starting at 40°C)
Ohmic resistance	50 Ω ±10%
Max. operating voltage	850 VDC
Insulation voltage type test	4,000 VAC
Intrinsically safe	Yes (for operating voltages ≥500 VDC)
Terminal cable outer cross section dimension of attachment cable	9 to 16.6 mm

Temperature model data

Thermal resistance between braking resistor and environment depending on mounting orientation – Standing horizontally	1.657 K/W
Thermal resistance between braking resistor and environment depending on mounting orientation – Hanging vertically	1.517 K/W
Thermal capacity	30.88 Ws/K
Max. permissible overtemperature	683°C

Operating conditions

Permissible mounting orientations – Connection box, bottom	Yes
Permissible mounting orientations – Connection box, top	No
Permissible mounting orientations – Standing horizontally	Yes
Degree of protection per EN 60529 – Connection box, bottom	IP65
Degree of protection per EN 60529 – Connection box, top	-
Degree of protection per EN 60529 – Standing horizontally	IP65

Ambient conditions

Temperature – Operation	-40 to 90°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	124 mm
Dimensions – Height	118 mm
Dimensions – Depth	355 mm
Weight	2.4 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 8B0W0045H000.001-1ZIP · 3 MB · 1.1 (09/07/2022)

Certificates (3)
