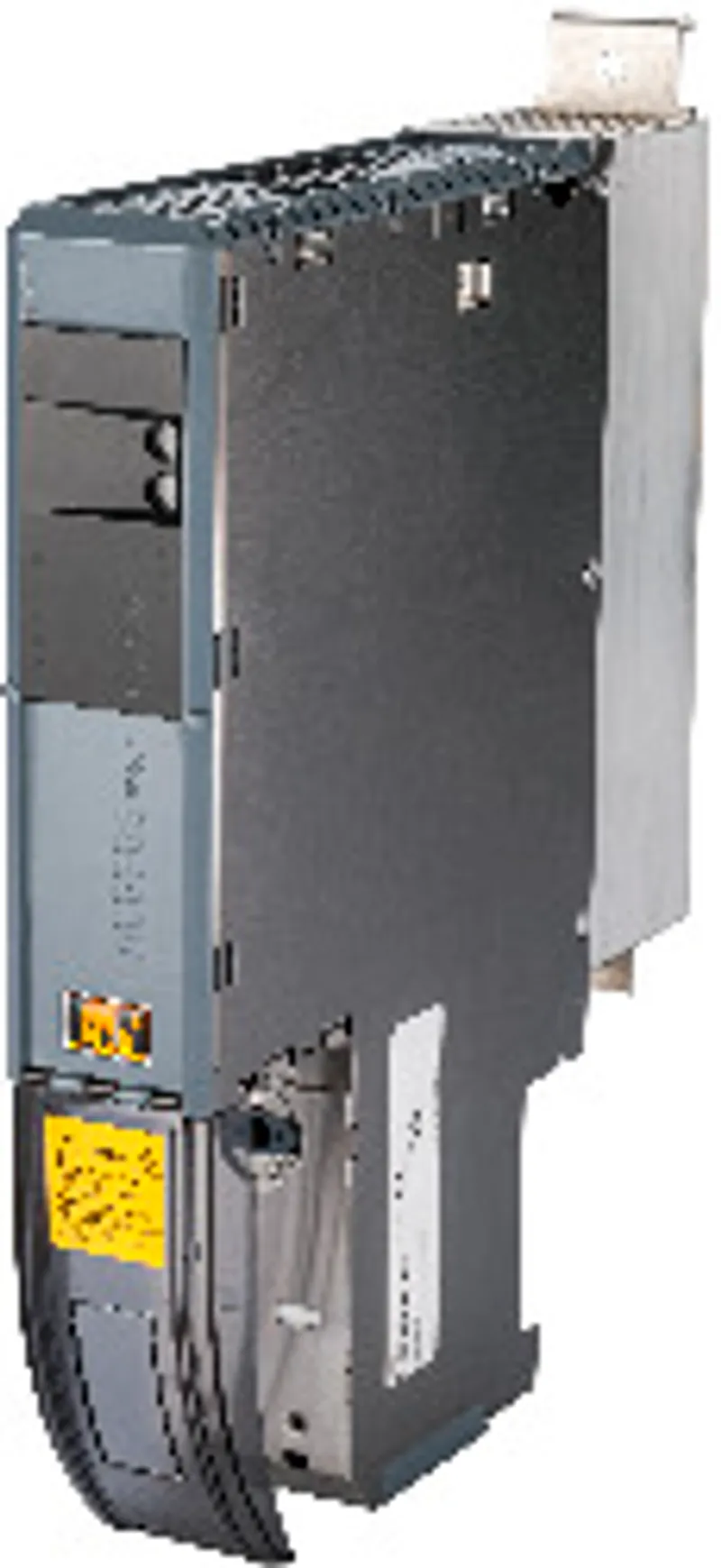

B&R 8B0C0320HW00.B00-1

ACOPOSmulti auxiliary supply module, 35 A, AS

MPN: 8B0C0320HW00.B00-1
Category: Wall mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8B0C0320HW00.B00-1?

ACOPOSmulti auxiliary supply module, 35 A, AS, wall mounting, 42...58 VOut

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Wall mounting

DC bus connection

Voltage – Nominal	750 VDC
Voltage – Operating range in continuous operation	260 to 800 VDC
Voltage – Full continuous power	550 to 800 VDC
Continuous power consumption	Max. 2120 W
Power dissipation with continuous power	15 W (0% continuous power); 30 W (50% continuous power); 90 W (100% continuous power) (note: Output 58 V)
DC bus capacitance	1.2 µF
Variant	ACOPOSmulti backplane

24 VDC output

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	24 VDC ±6%
Variant – 24 VDC, COM	Connector
Quantity	1
Fuse protection	250 mA (slow-blow) electronic, automatic reset

24 VDC internal system power supply

Input voltage	25 VDC ±1.6%
Input capacitance	47 µF
Max. power consumption	7 W + P 24 VDC Out
Variant	ACOPOSmulti backplane

58 VDC output

Output voltage – Nominal	58 VDC
Output voltage – Workspace	42 to 58 VDC
Output voltage – Residual ripple	Typ. 200 mV SS
Output voltage – Input stability	Typ. <50 mV (dynamic) (note: U DC : 250 to 800 V)
Output voltage – Load stability	250 mV SS (dynamic) (note: Output current slope: 500 A/ms)
Reduction of continuous current – Depending on ambient temperature	0.2 A/K (starting at 40°C)
Reduction of continuous current – Depending on installation elevation	3.5 A per 1000 m (starting at 500 m above sea level)
Reduction of continuous current – Depending on the input voltage	0.0732 A/V * (550 V - Input voltage)
Reduction of continuous current – Depending on cooling type	No reduction
Reduction of peak current – Depending on the input voltage	0,136 A/V * (600 V - Input voltage)
Protective measures – No-load proof	Yes
Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Protective measures – Feedback protection	Yes <63 V
Protective measures – Overtemperature protection	Yes
Protective measures – Output/Input isolation	PELV
Quantity	1 (note: 2 separate connections.)
Continuous power	(Output voltage / 58 VDC) * 2030 W; (note: Applies to supply and regenerative operation.)
Continuous current	±35 A;
Peak current	±60 A (max. 2 s)
Startup delay	Max. 8 s
Startup time	Typ. 300 ms
Variant	Connector
Shield connection	Yes
Connection	Parallel connection on output: Not permitted; Serial connection on output: Not permitted
Max. cable length	30 m

Fieldbus

Type	POWERLINK V2 controlled node (CN)
Variant	2x RJ45, shielded, 2-port hub
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s

Digital inputs

Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching delay – Rising edge	52 ±0.5 µs (digitally filtered)
Switching delay – Falling edge	53 ±0.5 µs (digitally filtered)
Quantity	1
Modulation compared to ground potential	±38 VDC
Circuit	Sink
Input current at nominal voltage	Typ. 10 mA
Switching threshold	LOW: <5 VDC; HIGH: >15 VDC
Electrical isolation	Yes
Shielding	No
Max. cable length	30 m

Signal loop through

Quantity	2 pairs
Voltage	Max. 30 VDC
Current	Max. 100 mA (note: External fusing recommended.)
Electrical isolation	Yes
Loop through for STO	Yes
Shielding	No
Variant	Pair1_1, Pair1_2, Pair2_1, Pair2_2
Max. cable length	30 m

Battery voltage measurement

Input voltage – Maximum	10 V
Measurement – Load pulse	3 mA
Measurement – Pulse duration	Max. 500 ms
Measurement – Threshold value for undervoltage warning	5.2 V (note: The value is designed to measure the voltage of two 3.6 V Li-ion batteries connected in series.)
Quantity	1
Electrical isolation	Yes
Idle current	Max. 10 µA
Variant	Connector
Shielding	No
Max. cable length	30 m

Support

Motion system – mapp Motion	5.13.1 and higher
Motion system – ACP10/ARNC0	All versions (note: 8B0C0320Hx00.B00-1 auxiliary supply modules are only permitted to be used in ACOPOSmulti drive systems with 8B0P0110Hx00.000-1 power supply modules if the power supply modules have operating system version ACP10 V5.10.0 or higher.)

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20 (note: The specified degree of protection is only provided if suitable terminals are connected to all connectors on the module and all fans are installed.)

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Wall mounting	263 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Width	53.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Weight	3.2 kg
Module width	1

Accessories

Required accessories (order separately)

8BZ0C032000.0B0-1C	Terminal block sets — Push-in terminal block set for 8B0C0320Hx00.B00-1 ACOPOSmulti modules: 1x 8TB4104.228P-10, 1x 8TB2112.2210-00, 1x 8TB2104.2210-00, 1x 8TBB1…
8BZ0C032000.0B0-1A	Terminal block sets — Screw clamp terminal block set for 8B0C0320Hx00.B00-1 ACOPOSmulti modules: 1x 8TB4104.208P-10, 1x 8TB2112.2010-00, 1x 8TB2104.2010-00, 1x 8…

Optional accessories (14)

8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.1000	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 100 m
X20CA0E61.01000	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 10 m
X20CA0E61.00500	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 5 m
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8SCS010.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20
8SCS009.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14
8SCS002.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS000.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm
8TB2112.2010-00	Terminal blocks — 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.2210-00	Terminal blocks — 4-pin push-in terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.2010-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
