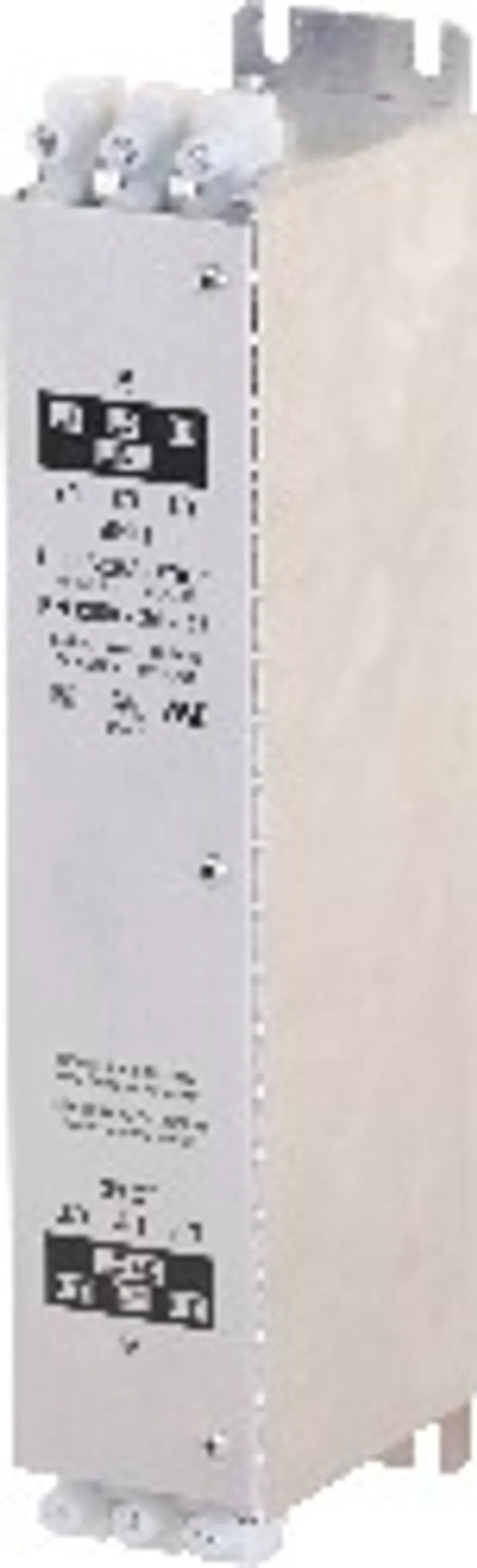

B&R 8B0F0160H000.A00-1
Wide mains input voltage range
- MPN
- 8B0F0160H000.A00-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8B0F0160H000.A00-1?
Wide mains input voltage range
Optimally suited for ACOPOSmulti 8B0P power supply modules
Compliance with limit values per CISPR11, group 2, class A
In order to conform to the EMC limit values, all 8BVI inverter modules in the drive system connected to the 8B0F line filter must be operated at the nominal switching frequency (5 kHz). The total length of all motor cables on each drive system (and for each 8B0F line filter) is not permitted to exceed 250 m. The cable length between the 8B0F line filter and the 8B0P power supply module is not permitted to exceed 5 m. The maximum permissible motor cable length per motor connection must also be taken into consideration (see 8BVI inverter modules).
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cooling and mounting type | Wall mounting |
Mains connection
| Reduction of continuous current depending on ambient temperature – Starting at 50°C | 0.165 A/K |
| Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level | 0.8 A eff per 1000 m |
| Variant – On mains | No |
| Variant – On device | No |
| Variant – L1, L2, L3 and L1´, L2´, L3´ | Terminals |
| Variant – PE | M5 threaded bolt |
| Terminal connection cross section – With wire end sleeve | Max. 4 mm² |
| Terminal connection cross section – UL/C-UL-US | 12 AWG |
| Terminal connection cross section – CSA | 12 AWG |
| Permissible network configurations | TT, TNDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as) |
| Mains input voltage | Max. 3x 480 VAC ±10% |
| Frequency | 0 to 60 Hz |
| Continuous current | 16 A eff (note: Valid under the following conditions: 3x 480 VAC mains input voltage, 50°C ambient temperature, cos phi = 0.8. The exact value depends on the application.) |
| Peak current | 24 A eff (<1 min), 1x/h |
| Power dissipation | 6.1 W (note: Valid under the following conditions: 25°C ambient temperature, frequency 50 Hz.) |
| Line filter per EN 61800-3, category C3 | Yes (note: Limit values from EN 61800-3 C3 (second environment).) |
Electrical properties
| Discharge capacitance | 0.4 µF |
| Leakage current | 33 mA (note: Valid under the following conditions: 400 VAC mains input voltage, 50 Hz frequency. NOTE: If two phases are interrupted, the leakage current can be up to 5.4 times higher in extreme cases.) |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 1000 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 1000 m to 4,000 m above sea level is possible when taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | In preparation |
| Overvoltage category per IEC 60950 | II |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 45 mm |
| Dimensions – Height | 250 mm |
| Dimensions – Depth | 70 mm |
| Weight | 0.8 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8B0F0160H000.A00-1: frequently asked questions
When can 8B0F0160H000.A00-1 be shipped?
8B0F0160H000.A00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8B0F0160H000.A00-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8B0F0160H000.A00-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0F0160H000.A00-1, subject to availability and destination.
