Passive line filter Parts
Compare Passive line filter
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Reduction of continuous current depending on ambient temperature – Starting at 50°C | Terminal connection cross section – With wire end sleeve | Peak current | Dimensions – Width | Dimensions – Height |
|---|---|---|---|---|---|

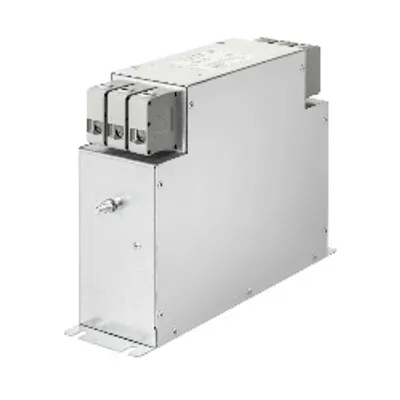

| 8EF0160H300.1-1 | 0.32 A eff /K | 0.5 to 6 mm²; 20 - 8 AWG | 24 A eff | 55 mm | 230 mm |
| 8B0F0160H000.000-1 | 0.164 A/K | 0.25 to 6 mm² | 24 A eff (<1 min), 1x/h | 45 mm | 263.8 mm |

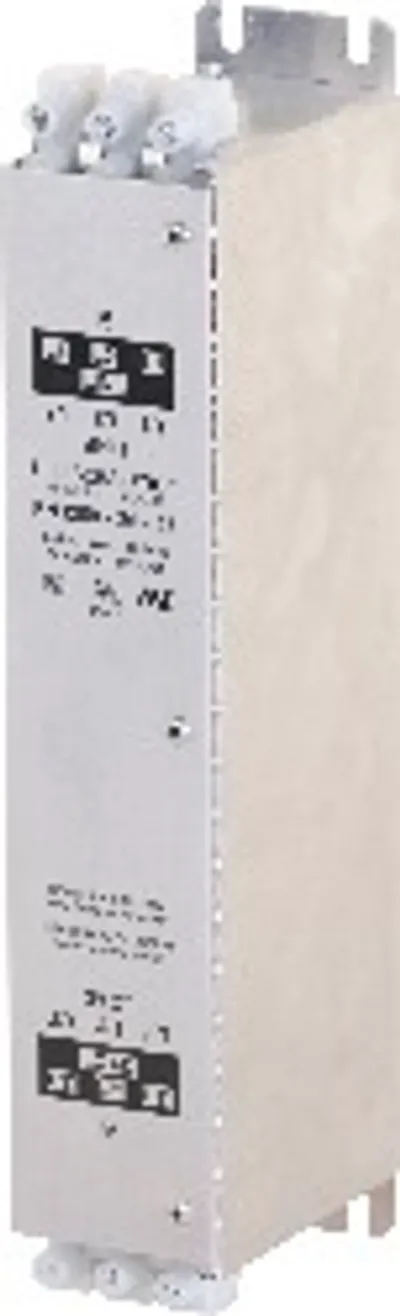

| 8B0F0300H000.000-1 | 0.308 A/K | Max. 10 mm² | 45 A eff (<1 min), 1x/h | 50 mm | 270 mm |

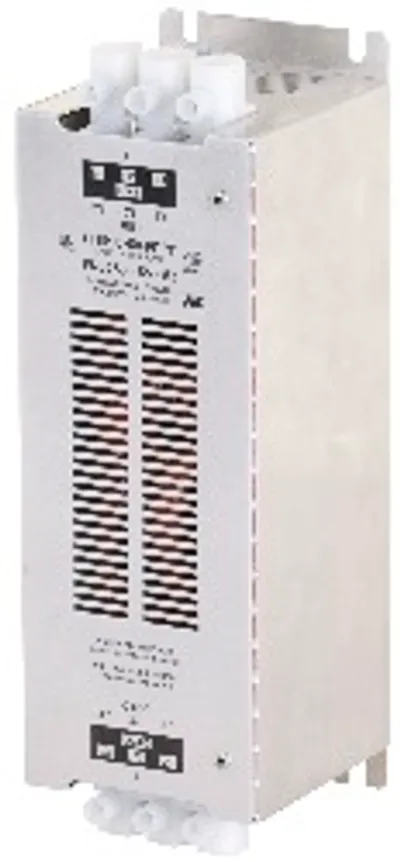

| 8B0F0550H000.000-1 | 0.565 A/K | Max. 16 mm² | 82.5 A eff (<1 min), 1x/h | 85 mm | 250 mm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Cooling and mounting type | Wall mounting |
| Variant – On mains | No |
| Variant – On device | No |
| Variant – L1, L2, L3 and L1´, L2´, L3´ | Terminals |
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
