CPU boards Parts
Compare CPU boards
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Processor – Type | Processor – Clock frequency | Processor – Intel Smart Cache | Graphics – Controller | Chipset |
|---|---|---|---|---|---|
| 5PC900.TS17-00 | Intel Core i5-6440EQ | 2700 MHz | 6 MB | Intel HD Graphics 530 | Intel QM170 |
| 5PC900.TS17-01 | Intel Core i3-6100E | 2700 MHz | 3 MB | Intel HD Graphics 530 | Intel HM170 |

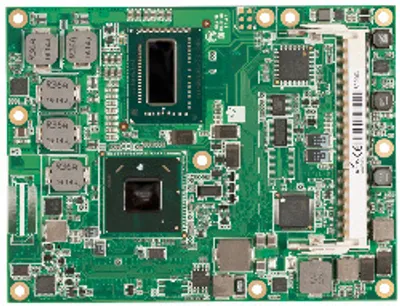

| 5PC900.TS17-02 | Intel Celeron G3900E | 2400 MHz | 2 MB | Intel HD Graphics 510 | Intel HM170 |
| 5PC900.TS17-03 | Intel Xeon E3-1515MV5 | 2800 MHz | 8 MB | Intel Iris Pro Graphics P580 | Intel CM236 |
| 5PC900.TS17-04 | Intel Core i7-6820EQ | 2800 MHz | 8 MB | Intel HD Graphics 530 | Intel QM170 |
| 5PC900.TS77-09 | Intel Celeron 1020E | 2200 MHz | 2 MB | Intel HD Graphics 2500 | Intel HM76 |
| 5PC900.TS77-10 | Intel Celeron 1047UE | 1400 MHz | 2 MB | Intel HD Graphics 2500 | Intel HM76 |
| 5PC900.TS77-00 | Intel Core i7-3615QE | 2300 MHz | 6 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-01 | Intel Core i7-3612QE | 2100 MHz | 6 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-02 | Intel Core i7-3555LE | 2500 MHz | 4 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-03 | Intel Core i7-3517UE | 1700 MHz | 4 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-04 | Intel Core i5-3610ME | 2700 MHz | 3 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-05 | Intel Core i3-3120ME | 2400 MHz | 3 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-06 | Intel Core i3-3217UE | 1600 MHz | 3 MB | Intel HD Graphics 4000 | Intel QM77 |
| 5PC900.TS77-07 | Intel Celeron 847E | 1100 MHz | 2 MB | Intel HD Graphics 2000 | Intel HM76 |
| 5PC900.TS77-08 | Intel Celeron 827E | 1400 MHz | 1.5 MB | Intel HD Graphics 2000 | Intel HM76 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Number of memory channels | 2 |
