B&R 5PC781.1505-00
Panel PC 781 15" XGA, 0 PCI slots
- MPN
- 5PC781.1505-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5PC781.1505-00?

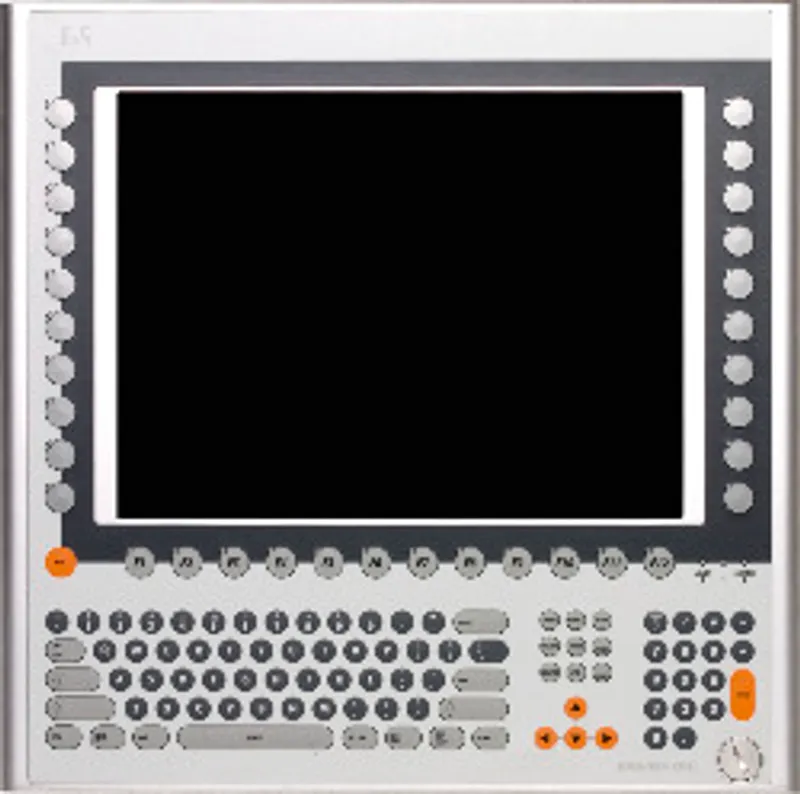

Panel PC 781 15" XGA, 0 PCI slots, 15" XGA color TFT display with touch screen (resistive), 12 soft keys, 20 function and 92 system keys, connections for 2x RS232, 3x USB 2.0, monitor, 2x Ethernet 10/100, AC97 sound, PS/2 keyboard/mouse, IP65 protection (front), 24 VDC. Order connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1 |
| B&R ID code | 0x1C5F |
| Cooling | Fan slot for fan kit |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | PS/2 (combined) |
Controller
| SRAM – Note | - |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 85° |
| Viewing angles – Vertical | Direction U / Direction D = 85° |
| Backlight – Type | LED |
| Backlight – Brightness | 350 cd/m² |
| Backlight – Half-brightness time | 70,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | AMT |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | Elo, serial, 12-bit |
| Touch screen – Transmittance | Up to 81% ±3% |
| Type | TFT color |
| Diagonal | 15" (381 mm) |
| Colors | 10 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 1000:1 |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | 9-pin male DSUB connector |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 2 – Type | Type I (note: For add-on CompactFlash slot or add-on hard disks.) |
| CompactFlash slot 2 – Note | optional |
| USB – Quantity | 3 (note: 2x rear, 1x front) |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Ethernet – Quantity | 2 |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Panel/Monitor interface – Variant | Female DVI-I connector |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| Audio – Type | AC97 sound |
| Audio – Inputs | Microphone, Line In |
| Audio – Outputs | Line Out |
| Add-on interface slot – Quantity | 1 |
Keys
| LED luminous intensity – Yellow | Typ. 12 mcd |
| Function keys | 20 with LED (yellow) |
| Soft keys | 12 with LED (yellow) |
| System keys | Alphanumeric keys, numeric keys, cursor block |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
Slots
| PCI slots – Quantity | - |
| PCI slots – Type | - |
| PCI slots – Variant | - |
| PCI slots – Standard | - |
| PCI slots – Bus speed | - |
| Slide-in drives | No |
| Add-on drives | optional (note: For add-on CompactFlash slot or add-on hard disks.) |
| Automation Panel Link slot | No |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 10 A, max. 40 A for < 300 μs |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water; Back: IP20 (only with connected CF card) |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -30 to 70°C |
| Temperature – Transport | -30 to 70°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark gray keys color | Similar to Pantone 431CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Orange keys color | Similar to Pantone 151CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Color slide-in labels | Similar to Pantone 429CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 435 mm |
| Dimensions – Height | 430 mm |
| Dimensions – Depth | 86.3 mm with heat sink 5AC700.HS01-01 or 5AC700.HS01-03 ; 101.5 mm with heat sink 5AC700.HS01-02 |
| Weight | Approx. 7500 g (component-dependent) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PC600.X945-00 | CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB… |
| 5AC700.HS01-03 | Heat sinks — Panel PC heat sink for CPU boards with Atom 1600 MHz. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (7)
| 5AC900.150X-01 | Accessories — Slide-in label template 15.0" for Automation Panel 5AP951.1505-01, 5AP980.1505-01, 5AP981.1505-01 and Panel PC 5PC781.1505-00, for 4 device… |
| 5AC600.HDDI-06 | Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al… |
| 5AC600.HDDI-05 | Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET). |
| 5AC600.CFSI-00 | Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card. |
| 5PC700.FA00-01 | Fan kits — Panel PC fan kit for Panel PC 700 10.4", 12.1", 15", 17" and 19" with 0 PCI slots. |
| 5AC600.CANI-00 | Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr… |
