B&R 5AC600.HDDI-05
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 100 kg |
Shipping & availability
When can 5AC600.HDDI-05 be shipped?
5AC600.HDDI-05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC600.HDDI-05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC600.HDDI-05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC600.HDDI-05, subject to availability and destination.

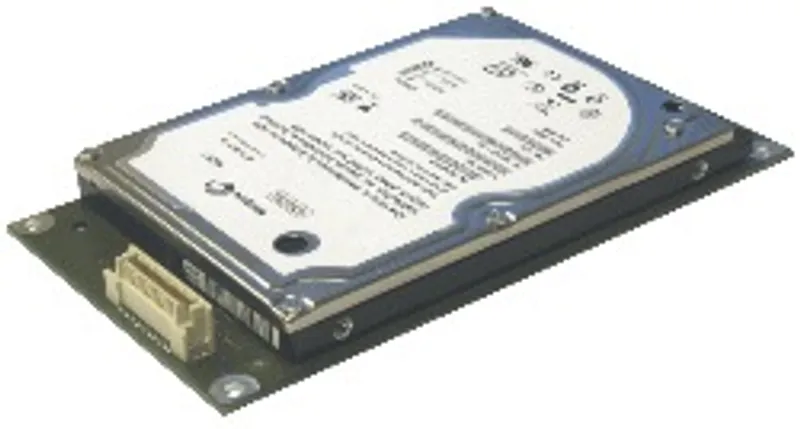

This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET).
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Capacity | 40 GB |
| Number of heads | 2 |
| Number of sectors | 78,140,160 |
| Bytes per sector | 512 |
| Cache | 8 MB |
| Speed | 5400 rpm ±1% |
| Startup time | Typ. 3 s (from 0 rpm to read access) |
| MTBF | 750,000 POH |
| S.M.A.R.T. support | Yes |
| Interface | ATA-6 |
| Access time | 12.5 ms |
| Internal | Max. 450 Mbit/s |
| To/From host | Max. 100 MB/s (Ultra DMA mode 5) |
| Minimum (track to track) | 1 ms |
| Nominal (read access) | 12.5 ms |
| Maximum (read access) | 22 ms |
| Operation | -300 to 5000 m |
| 24-hour operation | -30 to 85°C |
| Storage | -300 to 12192 m |
| Transport | Max. 800 g, 2 ms, no damage Max. 400 g, 0.5 ms, no damage |
| Installation | Permanent |
| Width | 13 mm |
| Length | 128 mm |
| Height | 98 mm |
| Weight | 100 g |
| Manufacturer | Seagate |
| Manufacturer's product ID | ST940817AM |
