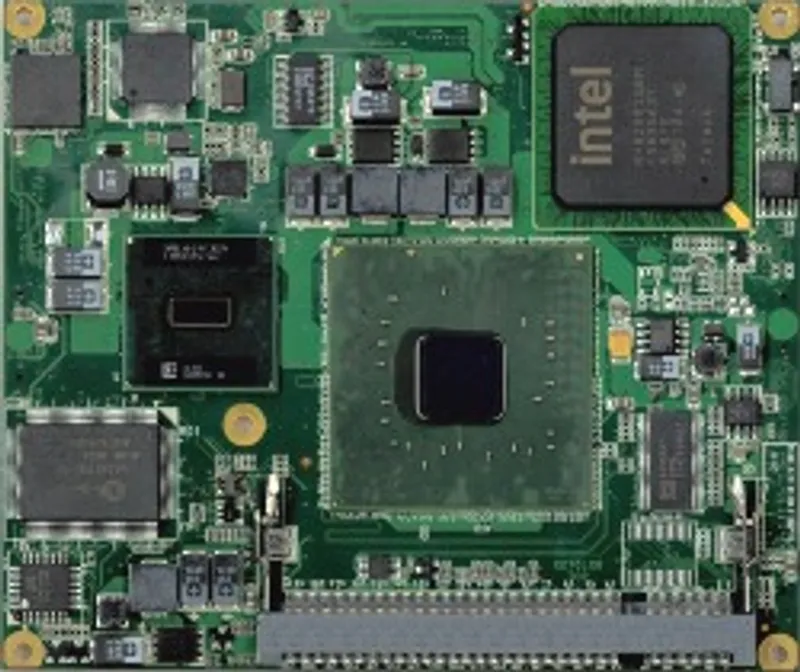

B&R 5PC600.X945-00

Intel® Atom™ N270 1.6 GHz

MPN: 5PC600.X945-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5PC600.X945-00?

Intel® Atom™ N270 1.6 GHz

Intel® 945GME chipset

2x DDR2 memory slot

Intel® GMA 950

AMI BIOS

CPU board Intel Atom, 1600 MHz, 533 MHz FSB, 512 kB L2 cache, 945GME chipset, 1 socket for SO-DIMM DDR2 RAM module

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes

Controller

Processor – Type	Intel® Atom™ N270
Processor – Clock frequency	1600 MHz
Processor – Architecture	45 nm
Processor – L1 cache	24 kB
Processor – L2 cache	512 kB
Processor – External bus	533 MHz
Processor – Intel 64 architecture	No
Processor – Expanded command set	Hyper-Threading Technology, Enhanced SpeedStep ; SSE, SSE2, SSE3 (Streaming SIMD Extensions)
Real-time clock – Accuracy	At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).)
Real-time clock – Battery-backed	Yes
Memory slot – Type	DDR2
Memory slot – Memory size	Max. 2 GB
Graphics – RGB	400 MHz RAMDAC, resolution up to 2048 x 1536 @75 Hz (QXGA) and 1920 x 1080 @>85 Hz (HDTV)
Graphics – GE1 = LVDS	Resolution from 640 x 480 up to 1920 x 1200 (embedded panel interface based on VESA EDID 1.3) (note: GE = Graphics engine)
Graphics – Controller	Intel® Graphics Media Accelerator 950
Graphics – Memory	Up to 224 MB (note: Allocated in main memory.)
Graphics – Color depth	Max. 32-bit
Bootloader	AMI BIOS
Chipset	Intel 945GME; Intel 82801GBM (ICH7-M)
Mass memory management	1x EIDE

Accessories

Required accessories (order separately)

5MMDDR.2048-01	Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300
5MMDDR.1024-01	Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300
5MMDDR.0512-01	Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300
