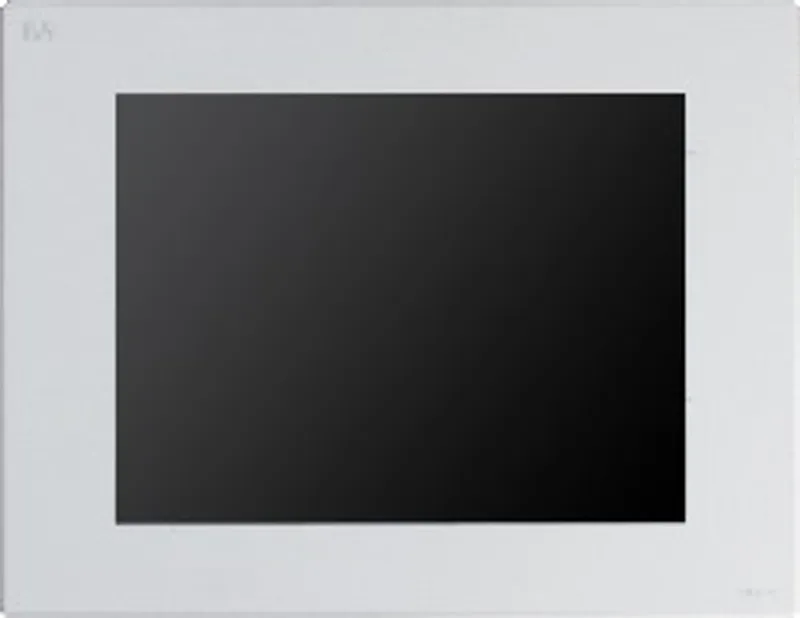

What is the B&R 5PC725.1505-01?
15" TFT XGA color display
Analog resistive touch screen
IP65 protection
Fan-free operation
Flange output on bottom for mounting on a support arm system
Panel PC 725 15" XGA, 15" XGA color TFT display with touch screen (resistive), connections for 1x RS232, 3x USB 2.0, 2x Ethernet 10/100, IP65 protection, 24 VDC. Flange installation on the bottom. Order connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | No |
| B&R ID code | 0xB0EC |
| Power button | No |
| Reset button | No |
| Buzzer | Yes |
Controller
| Power failure logic – Controller | MTCX |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Component-dependent |
| SRAM – Size | - |
| SRAM – Battery-backed | - |
| Bootloader | AMI BIOS |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 80° |
| Viewing angles – Vertical | Direction U / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness | 350 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | AMT (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | B&R, serial, 12-bit |
| Touch screen – Transmittance | 81% ±3% |
| Type | TFT color |
| Diagonal | 15" (381 mm) |
| Colors | 16 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 800:1 |
Interfaces
| COM1 – Type | RS232, modem supported |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| USB – Quantity | 3 (2x rear, 1x side) |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Ethernet – Quantity | 2 |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Add-on interface slot – Quantity | 1 |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 1.4 A |
| Inrush current | Typ. 10 A, max. 40 A for < 300 μs |
| Power consumption | 28.5 W |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | IP65 (all sides, only with closed housing) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: < 90%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: < 90%, non-condensing |
| Relative humidity – Transport | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: < 90%, non-condensing |
| Vibration – Operation | 2 to 9 Hz: 3 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 6 ms |
| Shock – Transport | 30 g, 6 ms |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Front – Material | Polyester |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray |
| Front – Gasket | Metamoll |
| Dimensions – Width | 426 mm |
| Dimensions – Height | 330 mm (without flange); 402 mm (with flange) |
| Dimensions – Depth | 58.7 mm (without flange); 83.2 mm (with flange) |
| Flange output | Bottom |
| Weight | 6.27 kg (without flange) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PC600.X945-00 | CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB… |
| 5AC725.FLGC-00 | Flanges — The flange is used to secure the system to a swing arm system. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (4)
| 5AC600.SSDI-00 | Drives — 128 GB solid-state drive; MLC flash; PATA support; Add-on; ATA/ATAPI-compatible This 128 GB add-on solid-state drive (SSD) is based on mult… |
| 5AC600.HDDI-06 | Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al… |
| 5AC600.HDDI-05 | Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET). |
| 5AC600.CFSI-00 | Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5PC725.1505-01: frequently asked questions
When can 5PC725.1505-01 be shipped?
5PC725.1505-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC725.1505-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC725.1505-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC725.1505-01, subject to availability and destination.
