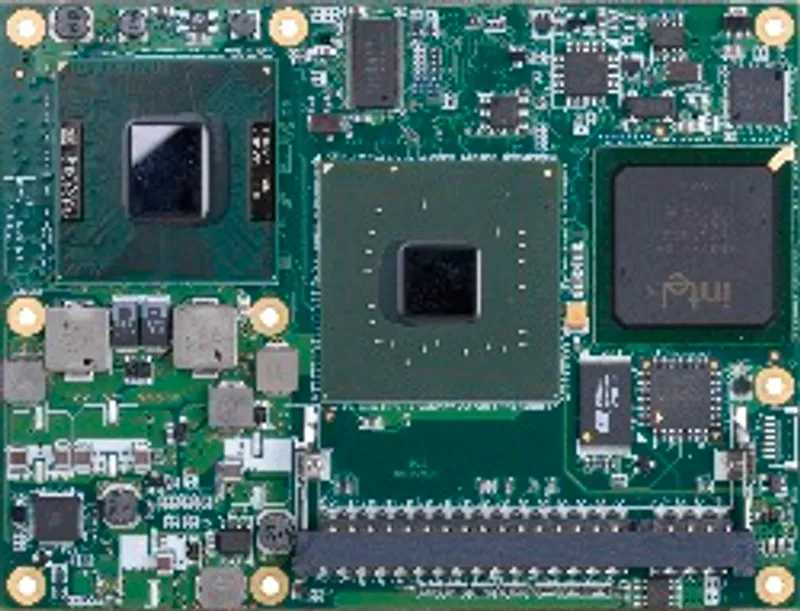

B&R 5PC800.B945-01
Intel® Core™2 Duo L7400 1.5 GHz
- MPN
- 5PC800.B945-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC800.B945-01?
Intel® Core™2 Duo L7400 1.5 GHz
Intel® 945GME chipset
2x DDR2 memory socket
Intel® GMA 950
AMI BIOS
Intel Core2 Duo L7400 CPU board, 1.5 GHz, dual core, 667 MHz FSB, 4 MB L2 cache, 945GME chipset, 2 slots for SO-DIMM DDR2 modules (max. expansion 3 GB), Realtek Ethernet Controller RTL8111B.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Controller
| Processor – Type | Intel® Core™2 Duo L7400 |
| Processor – Clock frequency | 1500 MHz |
| Processor – Number of cores | 2 |
| Processor – Architecture | 65 nm |
| Processor – L1 cache | 32 kB |
| Processor – L2 cache | 4 MB |
| Processor – External bus | 667 MHz |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Type | DDR2 |
| Memory slot – Memory size | Max. 3 GB |
| Graphics – DVI | 2x Intel-compliant SDVO ports, 1920 x 1080 |
| Graphics – RGB | 400 MHz RAMDAC, resolution up to 2048 x 1536 @75 Hz (QXGA) and 1920 x 1080 @85 Hz (HDTV) |
| Graphics – Controller | Intel® Graphics Media Accelerator 950 |
| Graphics – Memory | Up to 224 MB (note: Allocated in main memory.) |
| Graphics – Color depth | Max. 32-bit |
| Bootloader | Embedded AMI BIOS |
| Chipset | Intel 945GME; Intel 82801 GHM (ICH7M-DH) |
| Mass memory management | 2x SATA, 1x IDE |
| Power management | ACPI 2.0, S3 support (suspend to RAM) |
Accessories
Required accessories (order separately)
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
5PC800.B945-01: frequently asked questions
When can 5PC800.B945-01 be shipped?
5PC800.B945-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC800.B945-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC800.B945-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC800.B945-01, subject to availability and destination.
