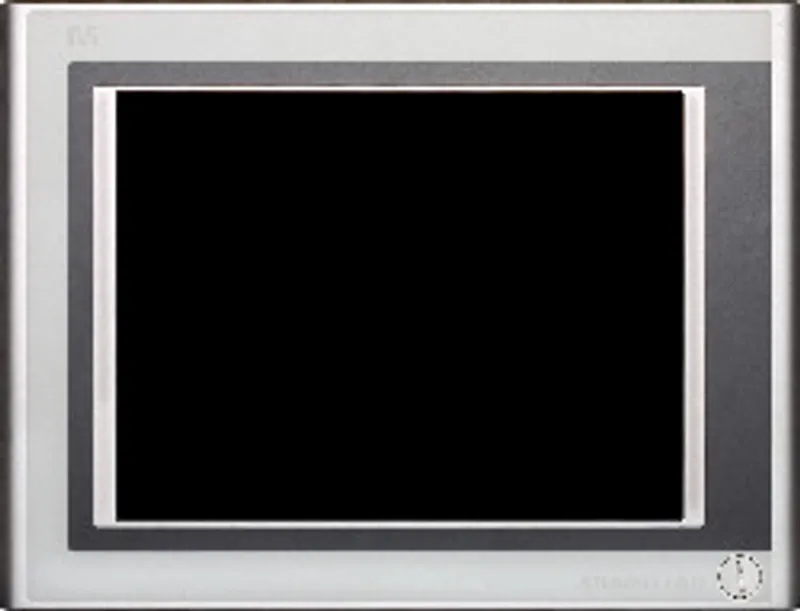

B&R 5PC720.1043-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5PC720.1043-01 be shipped?
5PC720.1043-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC720.1043-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC720.1043-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC720.1043-01, subject to availability and destination.
Panel PC 720 10.4" VGA, 2 PCI slots, 10.4" VGA color TFT display with touch screen (resistive), 1 drive slot, connections for 2x RS232, 3x USB 2.0, monitor, 2x Ethernet 10/100, AC97 sound, PS/2 keyboard/mouse, IP65 protection (front), 24 VDC. Order connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
Specifications
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1 |
| B&R ID code | 0x1C5D |
| Cooling | Fan slot for fan kit |
| Type | 32-bit |
| Service life | - |
| Removable | Yes, accessible from the outside |
| Variant | PCI half-size |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | PS/2 (combined) |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Note | Optional |
| Diagonal | 10.4" (264 mm) |
| Colors | 262,144 |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 900:1 |
| Horizontal | Direction R / Direction L = 80° |
| Vertical | Direction U / Direction D = 80° |
| Brightness | 450 cd/m² |
| Half-brightness time | 70,000 h |
| Technology | Analog, resistive |
| Controller | Elo, serial, 12-bit |
| Transmittance | Up to 81% ±3% |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 100 Mbit/s |
| Quantity | 2 |
| Transfer rate | 10/100 Mbit/s |
| Inputs | Microphone, Line In |
| Outputs | Line out |
| Function keys | No |
| Soft keys | No |
| System keys | No |
| LED luminous intensity | - |
| Standard | 2.2 |
| Bus speed | 33 MHz |
| Slide-in drives | 1 |
| Add-on drives | Optional |
| Automation Panel Link slot | No |
| Slot for fan kit | Yes |
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 10 A, max. 40 A for < 300 μs |
| Galvanic isolation | Yes |
| Degree of protection per EN 60529 | Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water Back: IP20 (only with connected CF card) |
| Operation | Max. 3000 m |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Frame | Aluminum, naturally anodized |
| Design | Gray |
| Light background color | Similar to Pantone 427CV |
| Dark border color around display | Similar to Pantone 432CV |
| Gasket | Flat gasket around display front |
| Width | 323 mm |
| Height | 260 mm |
| Depth | 151.3 mm with heat sink 5AC700.HS01-01 or 5AC700.HS01-03 166.5 mm with heat sink 5AC700.HS01-02 |
| Weight | Approx. 4500 g (component-dependent) |
