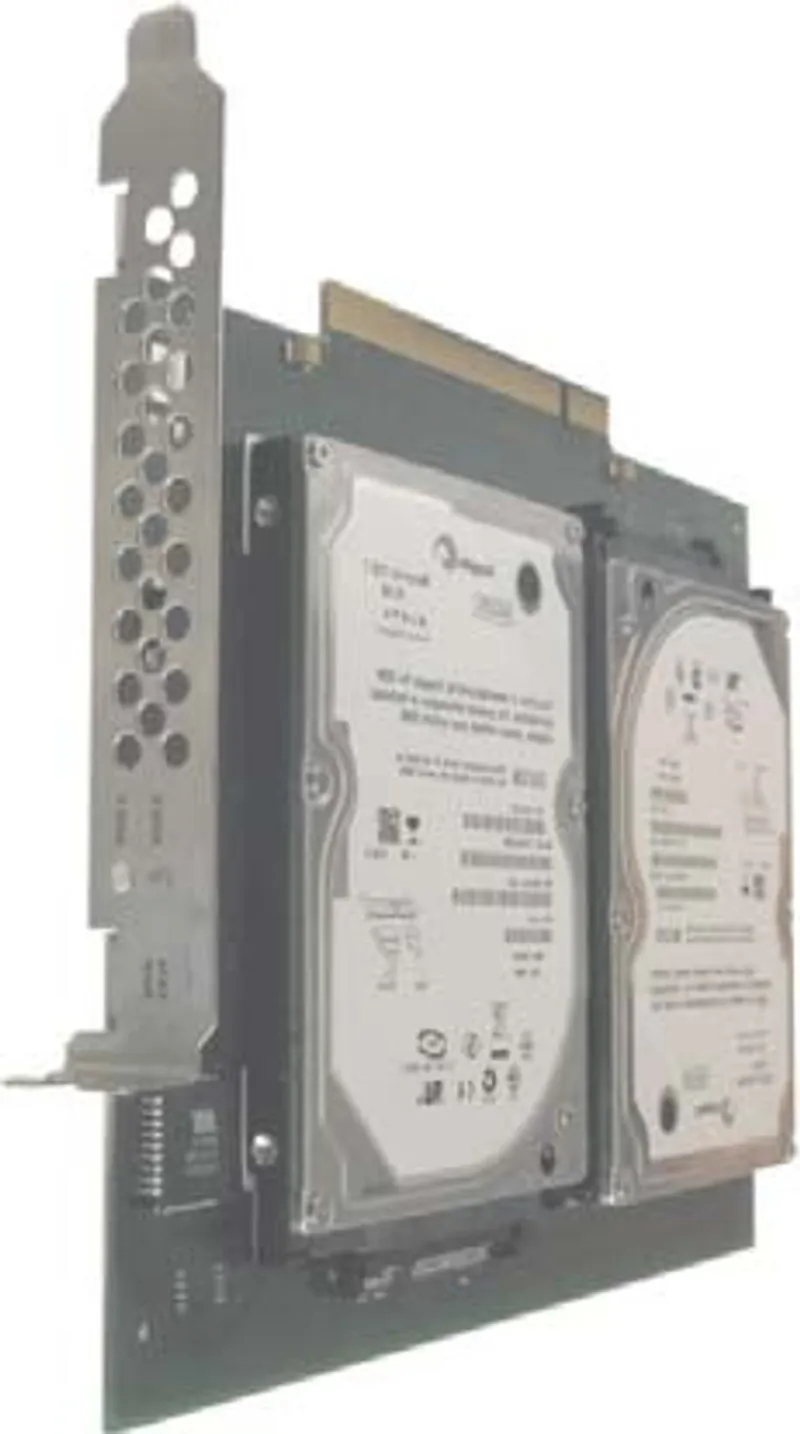

B&R 5ACPCI.RAIC-05
SATA RAID controller
- MPN
- 5ACPCI.RAIC-05
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5ACPCI.RAIC-05?
SATA RAID controller
RAID level 0 (striped) and 1 (mirrored)
2 SATA hard disk drives (suitable for 24-hour operation)
Only requires 1 PCI slot
Transfer rates up to 150 MB/s
This SATA RAID controller supports RAID level 0 and 1 and can be inserted in a PCI slot. The 250 GB hard disks that are used are specified for 24-hour operation (24x7).
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Number of hard disks | 2 |
Controller
| Type | SiI 3512 SATA link |
| Specification | Serial ATA 1.0 |
| Data transfer rate | Max. 1.5 Gbit/s (150 MB/s) |
| RAID level | Supports RAID 0, 1 |
| BIOS extension ROM requirements | Approx. 32 kB |
Hard disk
| Data transfer rate – Internal | Max. 1175 Mbit/s |
| Data transfer rate – To/From host | Max. 150 MB/s |
| Positioning time – Minimum (track to track) | 1 ms |
| Positioning time – Nominal (read access) | 14 ms |
| Positioning time – Maximum (read access) | 30 ms |
| Capacity | 250 GB |
| Number of heads | 1 |
| Number of sectors | 488,397,168 |
| Bytes per sector | 512 |
| Cache | 8 MB |
| Speed | 5400 rpm ±0.2% |
| Startup time | Typ. 3.6 s (from 0 rpm to read access) |
| S.M.A.R.T. support | Yes |
| Access time | 5.56 ms |
| Supported transfer modes | SATA 1.0, serial ATA revision 2.6; PIO mode 0-4, multiword DMA mode 0-2, UDMA mode 0-6 |
Electrical properties
| Power consumption | 0.3 A at 3.3 V (PCI bus); 1 A at 5 V (PCI bus) |
Ambient conditions
| Temperature – Operation | 0 to 60°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.) |
| Temperature – 24-hour operation | 0 to 60°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.) |
| Temperature – Storage | -40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.) |
| Temperature – Transport | -40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.) |
| Relative humidity – Operation | 5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.) |
| Relative humidity – Storage | 5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.) |
| Relative humidity – Transport | 5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.) |
| Vibration – Operation (continuous) | 5 to 500 Hz: Max. 0.125 g, duration 1 octave per minute, no unrecoverable errors (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Vibration – Operation (occasional) | 5 to 500 Hz: Max. 0.25 g, duration 1 octave per minute, no unrecoverable errors (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Vibration – Storage | 5 to 500 Hz: 5 g, duration 0.5 octaves per minute, no damage (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Vibration – Transport | 5 to 500 Hz: 5 g, duration 0.5 octaves per minute, no damage (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Shock – Operation | Max. 125 g, 2 ms, no unrecoverable errors (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Shock – Storage | Max. 400 g, 2 ms, no damage; Max. 500 g, 1 ms, no damage; Max. 300 g, 0.5 ms, no damage (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Shock – Transport | Max. 400 g, 2 ms, no damage; Max. 500 g, 1 ms, no damage; Max. 300 g, 0.5 ms, no damage (note: Operation in areas prone to vibration and shock can affect performance negatively (reduction of transfer rate).) |
| Elevation – Operation | - 300 to 3048 m |
| Elevation – Storage | - 300 to 12192 m |
Mechanical properties
| Installation | Permanent (note: PCI slot installation.) |
| Weight | 350 g |
Vendor information
| Manufacturer | Seagate |
| Manufacturer's product ID | ST9250315AS |
Accessories
Optional accessories (1)
| 5MMHDD.0250-00 | Drives — 250 GB hard disk; Replacement hard disk for a 5AC801.HDDI-03 hard disk or a 5ACPCI.RAIC-05 RAID controller; APC510 accessory (optional hard… |
