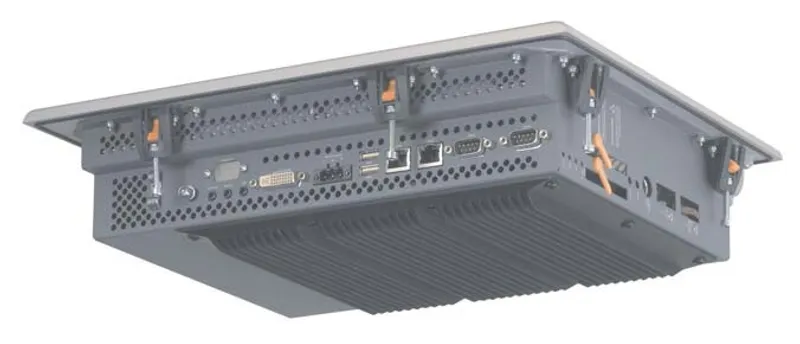

B&R 5PC720.1214-00
Panel PC 720 12.1" SVGA, 0 PCI slots
- MPN
- 5PC720.1214-00
€147.34excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC720.1214-00?
Panel PC 720 12.1" SVGA, 0 PCI slots, 12.1" SVGA color TFT display with touch screen (resistive), connections for 2x RS232, 3x USB 2.0, monitor, 2x Ethernet 10/100, AC97 sound, PS/2 keyboard/mouse, IP65 protection (front), 24 VDC. Order connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1 |
| B&R ID code | 0x1C5E |
| Cooling | Fan slot for fan kit |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | PS/2 (combined) |
Controller
| SRAM – Note | - |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 80° |
| Viewing angles – Vertical | Direction U / Direction D = 60° |
| Backlight – Type | LED |
| Backlight – Brightness | 450 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | AMT |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | Elo, serial, 12-bit |
| Touch screen – Transmittance | Up to 81% ±3% |
| Type | TFT color |
| Diagonal | 12.1" (307 mm) |
| Colors | 262,144 |
| Resolution | SVGA, 800 x 600 pixels |
| Contrast | 800:1 |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | 9-pin male DSUB connector |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 2 – Type | Type I (note: For add-on CompactFlash slot or add-on hard disks.) |
| CompactFlash slot 2 – Note | optional |
| USB – Quantity | 3 (note: 2x rear, 1x front) |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Ethernet – Quantity | 2 |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Panel/Monitor interface – Variant | Female DVI-I connector |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| Audio – Type | AC97 sound |
| Audio – Inputs | Microphone, Line In |
| Audio – Outputs | Line Out |
| Add-on interface slot – Quantity | 1 |
Keys
| Function keys | No |
| Soft keys | No |
| System keys | No |
| Service life | - |
| LED luminous intensity | - |
Slots
| PCI slots – Quantity | - |
| PCI slots – Type | - |
| PCI slots – Variant | - |
| PCI slots – Standard | - |
| PCI slots – Bus speed | - |
| Slide-in drives | No |
| Add-on drives | optional (note: For add-on CompactFlash slot or add-on hard disks.) |
| Automation Panel Link slot | No |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 10 A, max. 40 A for < 300 μs |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water; Back: IP20 (only with connected CF card) |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -30 to 70°C |
| Temperature – Transport | -30 to 70°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 362 mm |
| Dimensions – Height | 284 mm |
| Dimensions – Depth | 86.3 mm with heat sink 5AC700.HS01-01 or 5AC700.HS01-03 ; 101.5 mm with heat sink 5AC700.HS01-02 |
| Weight | Approx. 4200 g (component-dependent) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PC600.X945-00 | CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB… |
| 5AC700.HS01-03 | Heat sinks — Panel PC heat sink for CPU boards with Atom 1600 MHz. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (6)
| 5AC600.HDDI-06 | Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al… |
| 5AC600.HDDI-05 | Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET). |
| 5AC600.CFSI-00 | Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card. |
| 5PC700.FA00-01 | Fan kits — Panel PC fan kit for Panel PC 700 10.4", 12.1", 15", 17" and 19" with 0 PCI slots. |
| 5AC600.CANI-00 | Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr… |
| 5AC600.485I-00 | Serial adapters — This serial interface is a combined RS232/RS422/RS485 interface. The operating mode (RS232/RS422/RS485) is selected automatically depending… |
