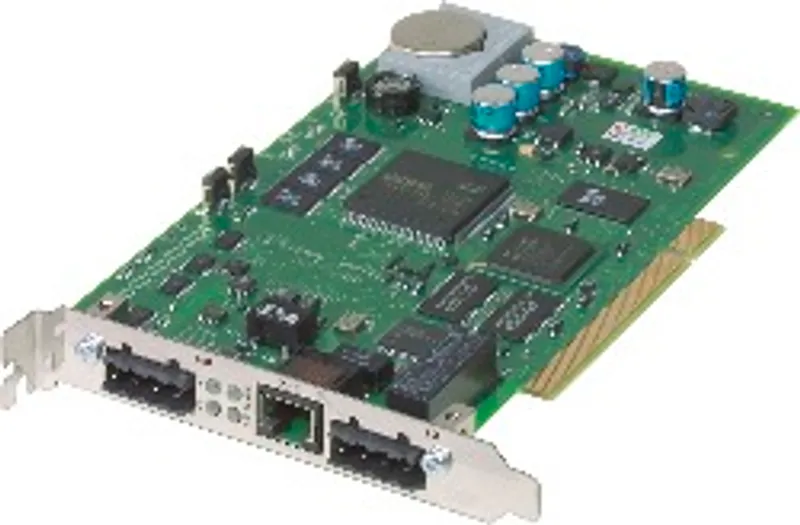

B&R 5LS189.6
Communication module, 1x X2X Link master
- MPN
- 5LS189.6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5LS189.6?
Logic scanner POWERLINK, PCI half-size module, 1 POWERLINK interface, managing or controlled node, 1 X2X Link master interface, electrically isolated, 1 MB SRAM (Automation Runtime), order 2x terminal blocks TB704 separately!
Specifications
Short description
| Communication module | 1x X2X Link master, 1x Ethernet POWERLINK managing or controlled node |
General information
| Diagnostics – Bus function (IF2) | Yes, using LED status indicator and software |
| Diagnostics – Data transfer (IF1) | Yes, using software |
| Diagnostics – Station status (IF2) | Yes, using LED status indicator and software |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – PC - IFx | Yes |
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Ready relay | Normally open and normally closed contact, max. 30 VDC, max. 10 A |
| Status indicators | Status of the POWERLINK station, network activity, link/collision for IF2 |
| Power consumption | 4.0 W |
Controller
| SRAM | 1 MB, battery-backed |
Interfaces
| Interface IF1 – Type | X2X Link master |
| Interface IF1 – Variant | 4-pin male multipoint connector |
| Interface IF2 – Fieldbus | Ethernet POWERLINK |
| Interface IF2 – Type | 100BASE-T (ANSI/IEEE 802.3) |
| Interface IF2 – Variant | Shielded RJ45 port |
| Interface IF2 – Line length | Max. 100 m between two stations (segment length) |
| Interface IF2 – Transfer rate | 100 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 in installed state |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 0 to 95% |
Mechanical properties
| Installation in – B&R Automation PC APC6xx | Yes |
| Installation in – B&R Panel PC | Yes |
| Installation in – Desktop PC | Yes |
| Note | Order 2x TB704 terminal blocks separately ; Lithium battery included in delivery |
| Slot | Standard PCI half-size module, Plug & Play |
Accessories
Required accessories (order separately)
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
Optional accessories (2)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
5LS189.6: frequently asked questions
When can 5LS189.6 be shipped?
5LS189.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5LS189.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5LS189.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5LS189.6, subject to availability and destination.
