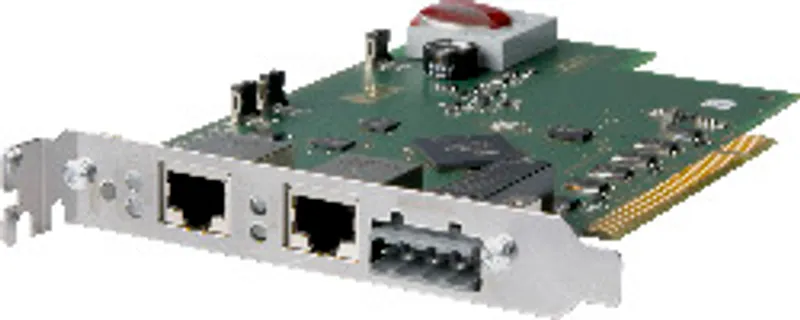

B&R 5LS182.6-1

Communication module, 1x POWERLINK (V1/V2) managing or…

MPN: 5LS182.6-1
Category: PCI communication modules

€795.00excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5LS182.6-1?

POWERLINK (V1/V2) for real-time Ethernet communication

Integrated hub for efficient cabling

Configurable ring redundancy

Logic scanner module 5LS182.6-1 is a PCI half-size module. It supports plug and play and has 1 MB SRAM for remanent data (process variables and data objects). Memory available for remanent process variables depends on the CPU, Automation Runtime, etc.

5LS182.6-1 is a POWERLINK logic scanner module with an integrated 2-port hub. It can be used as a manager or bus controller module. It is connected via an RJ45 port.

The module is also equipped with a ready relay.

Specifications

Short description

Communication module

1x POWERLINK (V1/V2) managing or controlled node

General information

Diagnostics – Bus function	Yes, using LED status indicator and software
Diagnostics – Station status	Yes, using LED status indicator and software
Electrical isolation – PC - IF1	Yes
Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0x2152
Ready relay	Normally open contact and normally closed contact, max. 30 VDC, max. 6 A
Status indicators	Status of the POWERLINK station, network activity, link
Power consumption	2 W

Controller

SRAM	1 MB, battery-backed

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Fieldbus	POWERLINK (V1/V2) managing or controlled node
Type	Type 3Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section)
Variant	2x shielded RJ45 (hub)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs

Operating conditions

Degree of protection per EN 60529

IP20 in installed state

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	0 to 95%, non-condensing
Relative humidity – Storage	0 to 95%, non-condensing
Relative humidity – Transport	0 to 95%, non-condensing

Mechanical properties

Installation in – B&R Automation PC	Yes
Installation in – B&R Panel PC	Yes
Installation in – Desktop PC	Yes
Note	Order 1x terminal block TB704 separately. ; Lithium battery included in content of delivery
Slot	Standard PCI half-size module, plug and play

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (2)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
