PCI communication modules Parts

B&R

Communication module, 1x POWERLINK V2 managing or…

B&R

Communication module, 1x POWERLINK (V1/V2) managing or…

B&R

Communication module, 1x POWERLINK (V1/V2) managing or…

B&R

Communication module, 1x CAN bus

B&R

Communication module, 1x X2X Link master

Compare PCI communication modules

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power consumption	SRAM	Transfer – Physical layer	Temperature – Storage	Temperature – Transport
5LS182.8	1.7 W	1 MB	ANSI/IEEE 802.3	-40 to 85°C	-40 to 85°C
5LS182.6-1	2 W	1 MB, battery-backed	100BASE-TX	-25 to 70°C	-25 to 70°C

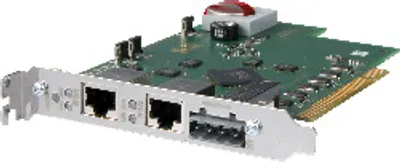

5LS182.6-2	2 W	1 MB, battery-backed	ANSI/IEEE 802.3	-25 to 70°C	-25 to 70°C
5LS187.6-1	4.0 W	1 MB, battery-backed	—	-25 to 70°C	—

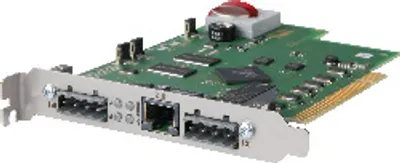

5LS189.6-1	4 W	1 MB, battery-backed	—	-25 to 70°C	-25 to 70°C

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Degree of protection per EN 60529	IP20 in installed state
Temperature – Operation	0 to 55°C
Relative humidity – Operation	0 to 95%, non-condensing
Installation in – B&R Automation PC	Yes
