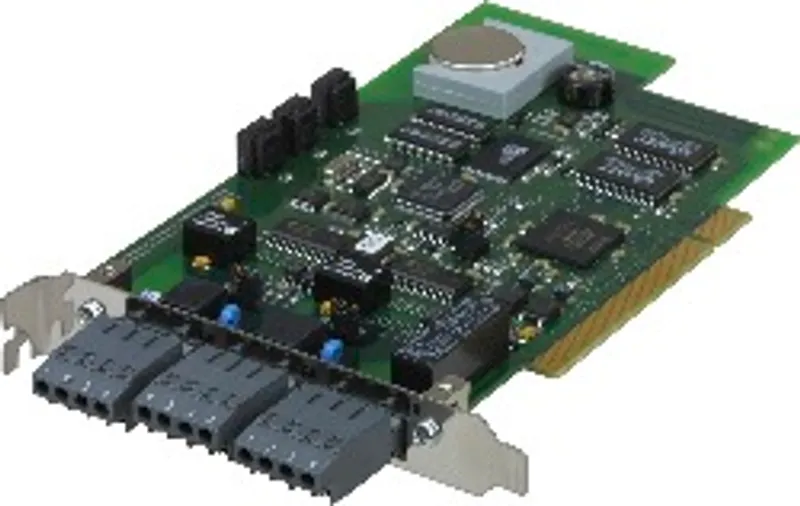

B&R 5LS172.6

Communication module, 2x CAN bus

MPN: 5LS172.6
Category: PCI communication modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5LS172.6?

Dual CAN bus connection

Logic Scanner, PCI half-size module, 2 CAN bus interfaces, electrically isolated, max. 500 kbit/s, object buffer the transmit and receive directions, 256 kB SRAM (Automation Runtime)

Specifications

Short description

Communication module

2x CAN bus

General information

Diagnostics – Data transfer	Yes, using software
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PC - IF1	Yes
Electrical isolation – PC - IF2	Yes
Certifications – CE	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Ready relay	Normally open contact and normally closed contact, max. 30 VDC, max. 6 A
Status indicators	-
Power consumption	2.4 W

Controller

SRAM	256 kB, battery-backed

Interfaces

Interface IF1 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF1 – Execution	4-pin male multipoint connector
Interface IF1 – Max. distance	1000 m
Interface IF1 – Transfer rate	Max. 500 kbit/s
Interface IF2 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF2 – Execution	4-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Transfer rate	Max. 500 kbit/s

Operating conditions

Degree of protection per EN 60529

IP20 in installed state

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	0 to 95%, non-condensing

Mechanical properties

Installation in – B&R Automation PC	Yes
Installation in – B&R Panel PC	Yes
Installation in – Desktop PC	Yes
Note	3x terminal blocks 0TB704.9 included in delivery; Lithium battery included in delivery
Slot	Standard PCI half-size module, plug and play

Accessories

Optional accessories (5)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
0AC913.93	Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)
0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 5LS172.6PDF · 8 MB · 1.0 (06/08/2004) - EN
