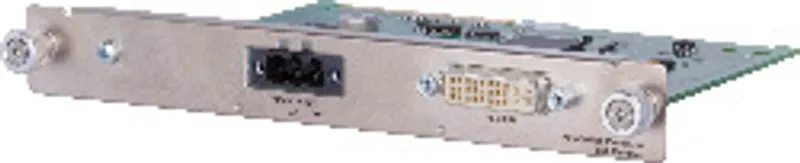

B&R 5DLSDL.1000-00

MPN: 5DLSDL.1000-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5DLSDL.1000-00?

Can be used in all Automation Panel 900 devices

SDL IN connections

SDL stands for "Smart Display Link". SDL allows all communication between the Automation Panel and a B&R Industrial PC to be handled using a single cable. In addition to display data, it also transmits touch screen, matrix key, LED and service data. The Automation Panel can be installed up to 40 m from the B&R Industrial PC. USB 1.1 is fully integrated in SDL and transferred over this distance as well without the need for external modules. A panel can be operated on a line using an SDL receiver.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification.)
Certifications – KC	Yes
BL adjuster	No (note: For setting the brightness of the AP900 backlight.)
B&R ID code	0x1C53

Interfaces

Panel/Monitor interface – Panel IN	SDL
Panel/Monitor interface – Panel OUT	-

Electrical properties

Nominal voltage	24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.)
Nominal currentAutomation Panel device.">	Max. 4.2 A (note: The specified value applies to an Automation Panel Link plug-in card being used in a 19)
Power consumption	Typ. 3 W
Overvoltage category per EN 61131-2	II

Mechanical properties

Locating screws – Quantity	2
Locating screws – Max. tightening torque	0.5 Nm

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
5CASDL.0100-01	SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations.
5CASDL.0050-01	SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations.
5CASDL.0018-01	SDL cables: 45° connectors — 5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations.
5CASDL.0400-13	SDL flex cables — 5CASDL.0xx0-13 SDL flex cables with extender are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0300-13	SDL flex cables — 5CASDL.0xx0-13 SDL flex cables with extender are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0300-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0250-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0200-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0150-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0100-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0050-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).
5CASDL.0018-03	SDL flex cables — 5CASDL.0xxx-03 SDL flex cables are designed for use in fixed as well as flexible installations (e.g. swing arm systems).

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation Panel 900 User's ManualPDF · 30 MB · 2.22 (01/19/2022) - EN

5DLSDL.1000-00: frequently asked questions

When can 5DLSDL.1000-00 be shipped?

5DLSDL.1000-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
