B&R 5DLSD3.1001-00
Link module for Automation Panel 9x3/1000/50001x SDL3 Panel…
- MPN
- 5DLSD3.1001-00
- Category
- Link modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5DLSD3.1001-00?

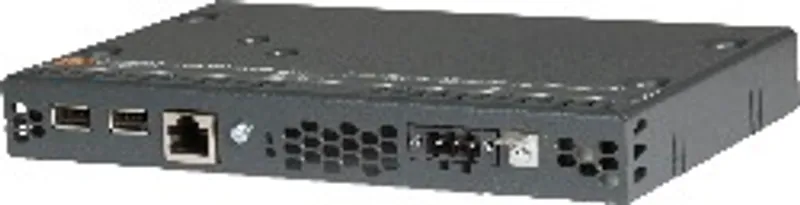

Link module for Automation Panel 9x3/1000/5000
1x SDL3 Panel In interface
2x USB 2.0 type A
Automation Panel link module - SDL3 receiver - For Automation Panel 923/933/1000 - For Automation Panel 5000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| LEDs | Status, Link |
| B&R ID code | 0xE3FC |
Interfaces
| USB – Quantity | 2 |
| USB – Type | USB 2.0 |
| USB – Variant | 2x type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s) |
| USB – Current-carrying capacity | Total max. 1 A |
| SDL3 In – Variant | RJ45, shielded |
| SDL3 In – Type | SDL3 |
Electrical properties
| Nominal voltage | 24 VDC, SELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | Max. 3 A |
| Operating voltage | 24 VDC ±25% |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Dimensions – Width | 190 mm |
| Dimensions – Height | 110 mm |
| Dimensions – Depth | 23.6 mm |
| Weight | 527 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
Optional accessories (11)
| 5CASD3.1000-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0750-00 | SDL3/SDL4/PoE cables — SDL3/SDL4/FT5x cable - 75 m - FT5x including Power over Ethernet |
| 5CASD3.0500-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0300-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0200-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0150-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0100-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0070-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0050-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0030-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
| 5CASD3.0010-00 | SDL3/SDL4/PoE cables — 5CASD3.xxxx-00 SDL3/SDL4 cables are designed to transfer SDL3/SDL4 data and enable easy cable installation. Due to the RJ45 connector, the… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5DLSD3.1001-00: frequently asked questions
When can 5DLSD3.1001-00 be shipped?
5DLSD3.1001-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5DLSD3.1001-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5DLSD3.1001-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5DLSD3.1001-00, subject to availability and destination.
