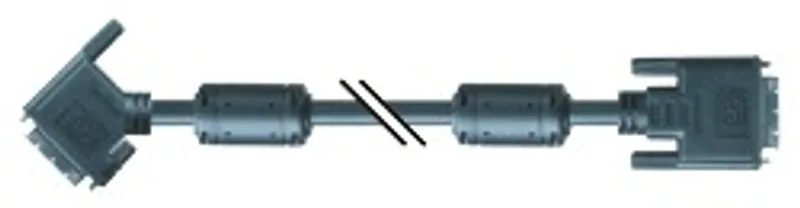

B&R 5CASDL.0018-01
5CASDL.0xxx-01 SDL cables with 45° connector are designed…
- MPN
- 5CASDL.0018-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5CASDL.0018-01?
5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
Cable construction
| Outer jacket – Material | PVC |
| Outer jacket – Color | Black |
| Wire cross section | 28 AWG |
| Shield | Individual cable pairs, entire cable |
| Cable shield | Tinned copper braiding, optical coverage > 85% |
Connector
| Type | 2x DVI-D (24+1), male |
| Mating cycles | 100 |
| Contacts | Gold-plated |
| Mechanical protection | Metal cover with crimped strain relief |
| Locating screw tightening torque | Max. 0.5 Nm |
Electrical properties
| Conductor resistance – 24 AWG | - |
| Conductor resistance – 28 AWG | ≤237 Ω/km |
| Operating voltage | ≤30 V |
| Insulation resistance | Min. 10 MΩ/km |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 80°C |
Mechanical properties
| Dimensions – Length | 1.8 m ±30 mm |
| Dimensions – Diameter | Max. 9 mm |
| Bend radius – Fixed installation | ≥5x cable diameter (connector to ferrite bead and ferrite bead to ferrite bead) |
| Flexibility | Conditionally flexible, applies from ferrite bead to ferrite bead (tested 100 cycles at 5x cable diameter, 20 cycles/minute) |
| Weight | Approx. 300 g |
