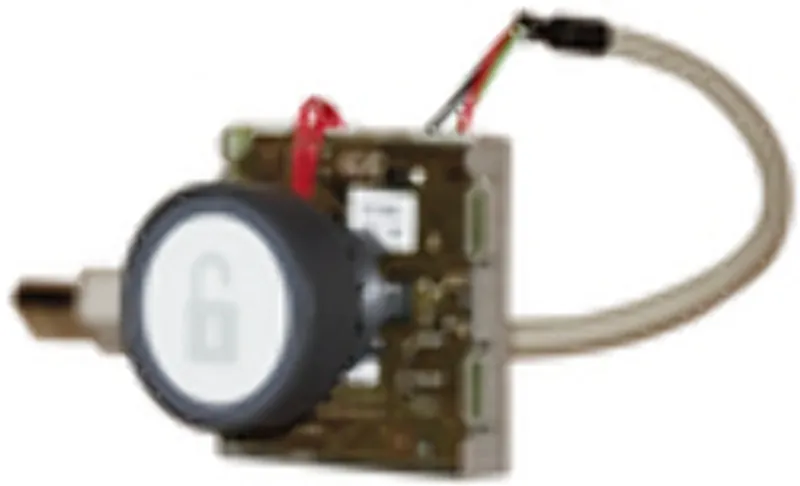

B&R 5E9000.29
125 kHz transponder read/write unit
- MPN
- 5E9000.29
- Category
- USB accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5E9000.29?
125 kHz transponder read/write unit
USB interface
Transponder 125 kHz, read/write unit, installation diameter 22.5 mm, USB attachment cable length 800 mm, IP65 protection (front).
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
Interfaces
| RFID read/write transponder unit – Type | For 4102 and 4150 transponders with amplitude modulation, carrier frequency 125 kHz |
| RFID read/write transponder unit – Read/Write range in air | Min. 16 mm |
Electrical properties
| Power consumption | Approx. 0.15 W |
| Supply voltage | 5 VDC ±20% (via USB) |
Operating conditions
| Degree of protection per EN 60529 | IP65 (front) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | T ≤ 40°C: 5% to 90% non-condensing<BR/>T > 40°C: < 75% non-condensing |
Mechanical properties
| Dimensions – Width | 44.4 mm |
| Dimensions – Height | 46.2 mm |
| Dimensions – Depth | 40.5 mm |
Accessories
Optional accessories (12)
| 5A9000.48 | Miscellaneous — Transponder tag, blue housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.47 | Miscellaneous — Transponder tag, green housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.46 | Miscellaneous — Transponder tag, red housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.45 | Miscellaneous — Transponder tag, yellow housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.44 | Miscellaneous — Transponder tag white housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.43 | Miscellaneous — Transponder tag black housing, read/write, 4150, 928-bit, 125 kHz |
| 5A9000.42 | Miscellaneous — Transponder tag, blue housing, read-only, 4102, 40-bit, 125 kHz |
| 5A9000.41 | Miscellaneous — Transponder tag, green housing, read-only, 4102, 40-bit, 125 kHz |
| 5A9000.40 | Miscellaneous — Transponder tag, red housing, read-only, 4102, 40-bit, 125 kHz |
| 5A9000.39 | Miscellaneous — Transponder tag, yellow housing, read-only, 4102, 40-bit, 125 kHz |
| 5A9000.38 | Miscellaneous — Transponder tag, white housing, read-only, 4102, 40-bit, 125 kHz |
| 5A9000.37 | Miscellaneous — Transponder tag, black housing, read-only, 4102, 40-bit, 125 kHz |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
5E9000.29: frequently asked questions
When can 5E9000.29 be shipped?
5E9000.29 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5E9000.29 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5E9000.29 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5E9000.29, subject to availability and destination.
