B&R 5CASDL.0050-01
MPN: 5CASDL.0050-01 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.59 kg |
Shipping & availability
When can 5CASDL.0050-01 be shipped?
5CASDL.0050-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CASDL.0050-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CASDL.0050-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CASDL.0050-01, subject to availability and destination.

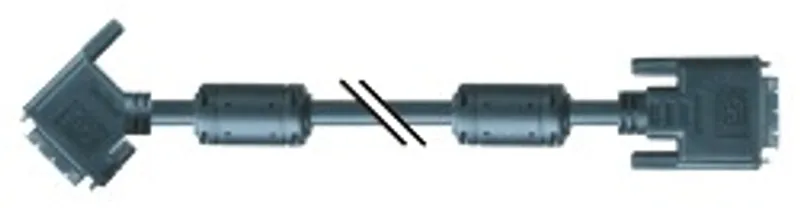

5CASDL.0xxx-01 SDL cables with 45° connector are designed for use in fixed installations.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV3 |
| KR | Yes |
| ABS | Yes |
| BV | EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck |
| Wire cross section | 28 AWG |
| Shield | Individual cable pairs, entire cable |
| Cable shield | Tinned copper braiding, optical coverage > 85% |
| Material | PVC |
| Color | Black |
| Type | 2x DVI-D (24+1), male |
| Mating cycles | 100 |
| Contacts | Gold-plated |
| Mechanical protection | Metal cover with crimped strain relief |
| Locating screw tightening torque | Max. 0.5 Nm |
| Operating voltage | ≤30 V |
| 24 AWG | - |
| 28 AWG | ≤237 Ω/km |
| Insulation resistance | Min. 10 MΩ/km |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Operation | 0 to 80°C |
| Length | 5 m ±50 mm |
| Diameter | Max. 9 mm |
| Fixed installation | ≥5x cable diameter (connector to ferrite bead and ferrite bead to ferrite bead) |
| Flexibility | Conditionally flexible, applies from ferrite bead to ferrite bead (tested 100 cycles at 5x cable diameter, 20 cycles/minute) |
| Weight | Approx. 590 g |
