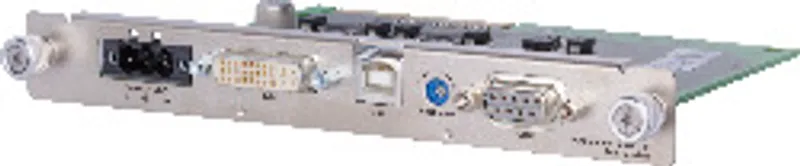

B&R 5DLDVI.1000-01

MPN: 5DLDVI.1000-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5DLDVI.1000-01?

Can be used in all Automation Panel 900 devices

DVI-D, RS232 and USB 2.0 connections

DVI stands for Digital Video Interface. DVI Link is the first choice whenever compatibility with a standard is important. With a DVI connection, the Automation Panel can also be used universally with systems from other manufacturers. This type of transfer supports the transmission of display data, USB 2.0 data and touch screen data over separate cables for each.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
BL adjuster	Yes (note: For setting the brightness of the AP900 backlight.)
B&R ID code	0x1A0B

Interfaces

COM1 – Type	RS232, not galvanically isolated
COM1 – Variant	DSUB, 9-pin, female
COM1 – Max. baud rate	115 kbit/s
USB – Quantity	1
USB – Type	USB 2.0 if cable length ≤ 5 m; USB 1.1 if cable length >5 m
USB – Variant	Type B
Panel In – Variant	DVI-D
Panel In – Type	SDL/DVI

Electrical properties

Nominal voltage	24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.)
Nominal currentAutomation Panel device.">	Max. 4.2 A (note: The specified value refers to an Automation Panel Link plug-in card connected in a 19)
Power consumption	Typ. 3 W

Mechanical properties

Locating screws – Quantity	2
Locating screws – Max. tightening torque	0.5 Nm

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
5CADVI.0100-00	DVI cables — 5CADVI.0xxx-00 DVI cables are designed for use in fixed installations.
5CADVI.0050-00	DVI cables — 5CADVI.0xxx-00 DVI cables are designed for use in fixed installations.
5CADVI.0018-00	DVI cables — 5CADVI.0xxx-00 DVI cables are designed for use in fixed installations.

Optional accessories (4)

9A0014.05	RS232 cables — RS232 cables serve as extension cables between two RS232 interfaces.
9A0014.02	RS232 cables — RS232 cables serve as extension cables between two RS232 interfaces.
5CAUSB.0050-00	USB cables — USB 2.0 connection cable - Type A - type B connector - 5 m
5CAUSB.0018-00	USB cables — USB 2.0 connection cable - Type A - type B connector - 1.8 m

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation Panel 900 User's ManualPDF · 30 MB · 2.22 (01/19/2022) - EN

5DLDVI.1000-01: frequently asked questions
