B&R 9A0014.05

RS232 cables serve as extension cables between two RS232…

MPN: 9A0014.05

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

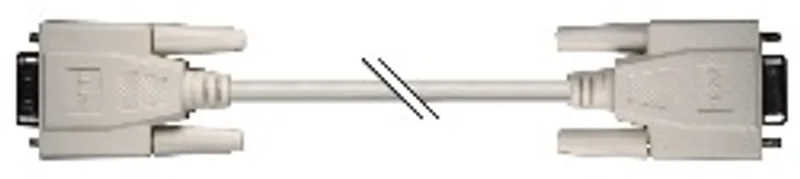

What is the B&R 9A0014.05?

RS232 cables serve as extension cables between two RS232 interfaces.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes

Cable construction

Outer jacket – Color	Beige
Wire cross section	26 AWG
Shield	Entire cable

Connector

Type	9-pin DSUB connector, male/female
Locating screw tightening torque	Max. 0.5 Nm

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Mechanical properties

Dimensions – Length	5 m ±80 mm
Dimensions – Diameter	Max. 5 mm
Bend radius	Min. 70 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

9A0014.05: frequently asked questions

When can 9A0014.05 be shipped?

9A0014.05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9A0014.05 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9A0014.05 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9A0014.05, subject to availability and destination.
