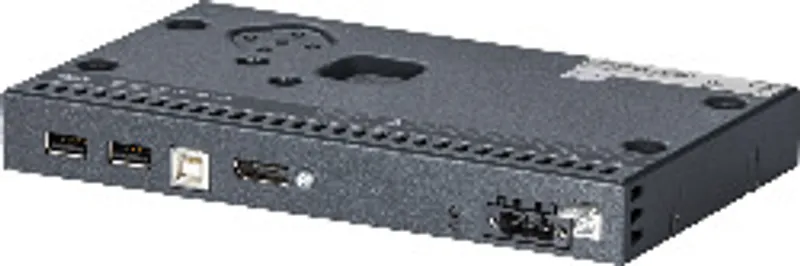

B&R 5DLDPO.1001-00
Automation Panel link module - DisplayPort receiver - For…
- MPN
- 5DLDPO.1001-00
- Category
- Link modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5DLDPO.1001-00?
Automation Panel link module - DisplayPort receiver - For Automation Panel 933/1130 - For Automation Panel 5130 - For Automation Panel 5230 (only with 5ACCKP00.xxxx-000)
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| LEDs | Status, Link |
| B&R ID code | 0x2F1A |
Interfaces
| USB – Quantity | 3 |
| USB – Type | USB 2.0 |
| USB – Variant | 2x type A, 1x type B |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Total max. 1 A (note: For the 2 USB type A female connectors.) |
| Panel In – Quantity | 1 |
| Panel In – Variant | DisplayPort |
Electrical properties
| Nominal voltage | 24 VDC, SELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | Max. 2.3 A (note: The maximum ambient temperature for the DisplayPort link module is limited to 50°C at a maximum nominal current of 2.3 A. At a continuous nominal current of max. 2.0 A, the specified max. ambient temperature applies.) |
| Operating voltage | 24 VDC ±25% |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Dimensions – Width | 190 mm |
| Dimensions – Height | 110 mm |
| Dimensions – Depth | 23.6 mm |
| Weight | 490 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
Optional accessories (8)
| 5CADPO.0100-00 | DisplayPort cables — DisplayPort cable 10 m |
| 5CADPO.0075-00 | DisplayPort cables — DisplayPort cable 7.5 m |
| 5CADPO.0050-00 | DisplayPort cables — DisplayPort cable 5 m |
| 5CADPO.0018-00 | DisplayPort cables — DisplayPort cable 1.8 m |
| 5CAUSB.0100-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 10 m |
| 5CAUSB.0075-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 7.5 m |
| 5CAUSB.0050-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 5 m |
| 5CAUSB.0018-00 | USB cables — USB 2.0 connection cable - Type A - type B connector - 1.8 m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5DLDPO.1001-00: frequently asked questions
When can 5DLDPO.1001-00 be shipped?
5DLDPO.1001-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5DLDPO.1001-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5DLDPO.1001-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5DLDPO.1001-00, subject to availability and destination.
