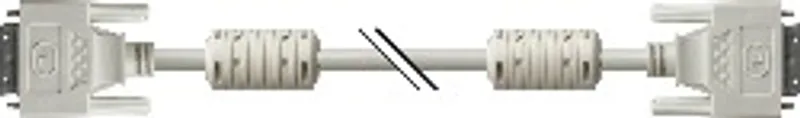

B&R 5CADVI.0100-00
5CADVI.0xxx-00 DVI cables are designed for use in fixed…
- MPN
- 5CADVI.0100-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5CADVI.0100-00?
5CADVI.0xxx-00 DVI cables are designed for use in fixed installations.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Cable construction
| Outer jacket – Material | PVC |
| Outer jacket – Color | Beige |
| Outer jacket – Labeling | AWM STYLE 20276 80°C 30 V VW1 DVI DIGITAL SINGLE LINK DER AN |
| Wire cross section | 28 AWG |
| Shield | Individual cable pairs, entire cable |
| Cable shield | Tinned copper braiding, optical coverage > 86% |
Connector
| Type | 2x DVI-D (18+1), male |
| Mating cycles | 100 |
| Locating screw tightening torque | Max. 0.5 Nm |
Electrical properties
| Conductor resistance | Max. 237 Ω/km |
| Insulation resistance | Min. 100 MΩ/km |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Dimensions – Length | 10 m ±100 mm |
| Dimensions – Diameter | Max. 8.5 mm |
| Bend radius | ≥5x cable diameter (connector to ferrite bead and ferrite bead to ferrite bead) |
| Weight | Approx. 790 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5CADVI.0100-00: frequently asked questions
When can 5CADVI.0100-00 be shipped?
5CADVI.0100-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CADVI.0100-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CADVI.0100-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CADVI.0100-00, subject to availability and destination.
