B&R 5AP920.1214-01
12.1" SVGA color TFT display
- MPN
- 5AP920.1214-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5AP920.1214-01?
12.1" SVGA color TFT display
Analog resistive touch screen
Small installation depth
Fan-free operation
Can be upgraded with Display Link cards or PPC300

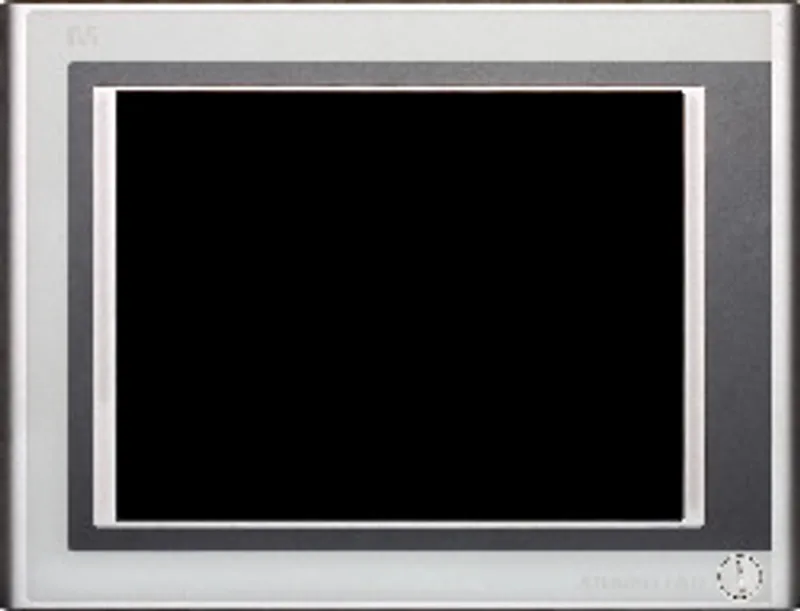

Automation Panel AP920 12.1" TFT - 800 x 600 pixels (4:3) - Single-touch (analog resistive) - Landscape format - IP65 protection (front)
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0x2AE7 |
Display
| Viewing angles – Horizontal | Direction R = 80° / Direction L = 80° |
| Viewing angles – Vertical | Direction U = 60° / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness | 450 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Filter glass – Transmittance | - |
| Filter glass – Anti-glare coating | - |
| Touch screen – Type | AMT (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Technology | Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Controller | Elo, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Transmittance | 81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Type | TFT color |
| Diagonal | 12.1" (307 mm) |
| Colors | 262,144 |
| Resolution | SVGA, 800 x 600 pixels |
| Contrast | 800:1 |
Interfaces
| USB – Quantity | 3 (note: USB devices can only be connected to the Automation Panel directly (without a hub).) |
| USB – Type | USB 2.0 (note: USB devices can only be connected to the Automation Panel directly (without a hub).) |
| USB – Execution | Type A (note: USB devices can only be connected to the Automation Panel directly (without a hub).) |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) (note: USB devices can only be connected to the Automation Panel directly (without a hub).) |
| USB – Current-carrying capacity | Max. 500 mA per connection (note: USB devices can only be connected to the Automation Panel directly (without a hub).) |
Keys
| LED luminous intensity – yellow | - |
| Function keys | No |
| Soft keys | No |
| System keys | No |
| Service life | - |
| LED luminous intensity | - |
Slots
| Compatible installation for PPC300 slot | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | Max. 3.2 A (note: The specified value applies to the Automation Panel device with a connected Automation Panel Link plug-in card.) |
| Inrush current | Typ. 6 A, max. 30 A for < 300 µs |
| Power consumption | Typ. 12 W, max. 15 W or 21 W with USB (without slot) |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Back: IP20 (only with an inserted Automation Panel Link card); Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water |
Ambient conditions
| Temperature – Operation | Without Rittal housing; Mounting orientation 0°: 0 to 50°C; Mounting orientations to -45° display above: 0 to 50°C; Mounting orientations to +45° display below: 0 to 50°C |
| Temperature – Storage | -30 to 70°C |
| Temperature – Transport | -30 to 70°C |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Metal |
| Housing – Coating | Similar to Pantone 432CV |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 362 mm |
| Dimensions – Height | 284 mm |
| Dimensions – Depth | 54 mm |
| Weight | Approx. 3400 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5DLSDL.1000-01 | Display links — Can be used in all Automation Panel 900 devices; SDL IN and SDL OUT connections This SDL transceiver makes it possible to connect an additi… |
| 5DLSDL.1000-00 | Display links — Can be used in all Automation Panel 900 devices; SDL IN connections SDL stands for "Smart Display Link". SDL allows all communication betwe… |
| 5DLDVI.1000-01 | Display links — Can be used in all Automation Panel 900 devices; DVI-D, RS232 and USB 2.0 connections DVI stands for Digital Video Interface. DVI Link is t… |
Optional accessories (2)
| 5PC310.L800-01 | Panel PC 300 insert cards — Can be installed in Automation Panel 900 systems; 500 MHz processor; 2x Ethernet 10/100 Mbit interfaces; 512 MB SRAM onboard; Fan-free oper… |
| 5PC310.L800-00 | Panel PC 300 insert cards — Can be installed in Automation Panel 900 devices; 500 MHz Processor; 2x Ethernet 10/100 Mbit interfaces; 256 MB SRAM onboard; Fan-free oper… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP920.1214-01: frequently asked questions
When can 5AP920.1214-01 be shipped?
5AP920.1214-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP920.1214-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP920.1214-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP920.1214-01, subject to availability and destination.
