B&R 5AP880.1505-00
Automation Panel AP880
- MPN
- 5AP880.1505-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP880.1505-00?

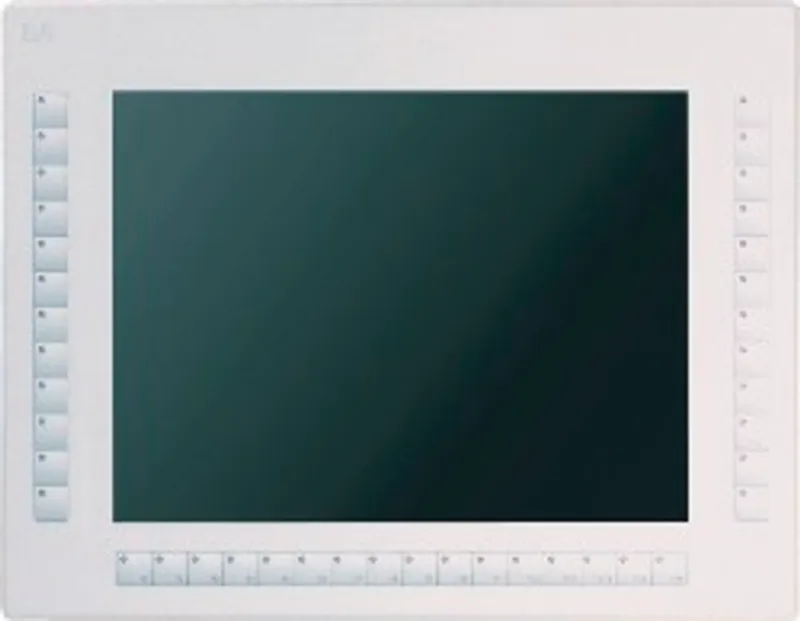

Automation Panel AP880
Support arm mounting for optimal ergonomics
15" XGA color TFT display with touch screen (resistive)
40 function keys
Connection for Smart Display Link
IP65 protection (with flange)
24 VDC
Automation Panel AP880, 15" XGA color TFT display with touch screen (resistive), 40 function keys, connection for Smart Display Link, IP65 protection (with flange). 24 VDC.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0x2087 |
Display
| Viewing angles – Horizontal | Direction R = 85° / Direction L = 85° |
| Viewing angles – Vertical | Direction U = 85° / Direction D = 85° |
| Backlight – Type | LED |
| Backlight – Brightness | 350 cd/m² |
| Backlight – Half-brightness time | 70,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | AMT (note: Drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Technology | Analog, resistive (note: Drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Controller | Elo, serial, 12-bit (note: Drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Transmittance | Up to 78% (note: Drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Type | TFT color |
| Diagonal | 15" (381 mm) |
| Colors | 10 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 1000:1 |
Interfaces
| Panel/Monitor interface – Type | SDL (note: SDL = Smart Display Link) |
| X2X Link | Yes |
Keys
| LED luminous intensity – yellow | Typ. 60 mcd |
| Function keys | 40 with LED (yellow) |
| Soft keys | No |
| System keys | No |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.2 A |
| Inrush current | Typ. 5 A, max. 30 A for < 300 μs |
| Power consumption | Typ. 27 W, max. 36 W |
| Emergency switch-off circuit loop resistance | Max. 5.5 Ω |
Operating conditions
| Degree of protection per EN 60529 | All sides: IP65, protected against dust and hose-directed water |
Ambient conditions
| Temperature – Operation | 0 to 50°C (mounting orientation 0°); 0 to 50°C (mounting orientation up to -45°); 0 to 45°C (mounting orientation up to +45°) |
| Temperature – Storage | -25 to 60°C |
| Temperature – Transport | -25 to 60°C |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Aluminum (ADC12) |
| Housing – Coating | Similar to silver metallic (semi-flat) |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Color slide-in labels | Similar to Pantone white on Pantone 429CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Circumferential foam gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 426 mm |
| Dimensions – Height | 330 mm |
| Dimensions – Depth | 41.3 mm (without flange) |
| Weight | Approx. 5000 g |
Accessories
Required accessories (order separately)
| 5CAPWR.0400-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0300-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0250-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0200-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0150-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0100-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0050-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
| 5CAPWR.0018-20 | Power supply cables — The 5CAPWR.0xxx-20 supply voltage cables are designed for use in both fixed and flexible installations (e.g. in support arm systems). |
Optional accessories (14)
| 5AC800.COV2-00 | Connectors — The extension cover serves to protect the extension unit connection slot on the Automation Panel 800 and is equipped with a USB port. |
| 5AC800.COV1-00 | Connectors — The extension cover serves to protect the extension unit connection slot on the Automation Panel 800. |
| 5AC800.CON2-00 | Connectors — This extension connector (60° design) is required to connect AP800 displays and extension units. |
| 5AC800.CON1-00 | Connectors — This extension connector (straight design) is required to connect AP800 displays and extension units. |
| 5AC800.FLG1-00 | Flanges — The extension flange is required for mounting on a support arm system. |
| 5AC800.EXT3-05 | Keypad attachments — AP800 keyboard expansion (right); 12 function keys; 8 illuminated ring keys; E-stop switch; Key switch; IP65 protection The keyboard expans… |
| 5AC800.EXT3-04 | Keypad attachments — AP800 keypad extension (left); 12 function keys; 8 illuminated ring keys; E-stop switch; Key switch; IP65 protection The keyboard expansion… |
| 5AC800.EXT3-03 | Keypad attachments — AP800 keyboard expansion (right); 4 function keys; 12 illuminated ring keys; E-stop switch; Key switch; IP65 protection The keyboard expans… |
| 5AC800.EXT3-02 | Keypad attachments — AP800 keypad extension (left); 4 function keys; 12 illuminated ring keys; E-stop switch; Key switch; IP65 protection The keyboard expansion… |
| 5AC800.EXT3-01 | Keypad attachments — AP800 keypad extension (right); 16 function keys; 8 illuminated ring keys; IP65 protection The keyboard expansion is equipped with 16 funct… |
| 5AC800.EXT3-00 | Keypad attachments — AP800 keypad extension (left); 16 function keys; 8 illuminated ring keys; IP65 protection The keyboard expansion is equipped with 16 functi… |
| 5AC800.EXT2-01 | Keypad attachments — AP800 keypad extension (right); 20 function keys; 20 system keys; IP65 protection The keyboard expansion is equipped with 20 function keys… |
| 5AC800.EXT2-00 | Keypad attachments — AP800 keypad extension (left); 20 function keys; 20 system keys; IP65 protection The keyboard expansion is equipped with 20 function keys a… |
| 5AC800.EXT1-00 | Keypad attachments — AP800 keypad extension (bottom); Alphanumeric Windows keyboard; US International keyboard layout; USB 1.1 interface; IP65 protection This k… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP880.1505-00: frequently asked questions
When can 5AP880.1505-00 be shipped?
5AP880.1505-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP880.1505-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP880.1505-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP880.1505-00, subject to availability and destination.
