B&R 5AC800.EXT3-04

AP800 keypad extension (left)

MPN: 5AC800.EXT3-04

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC800.EXT3-04?

AP800 keypad extension (left)

12 function keys

8 illuminated ring keys

E-stop switch

Key switch

IP65 protection

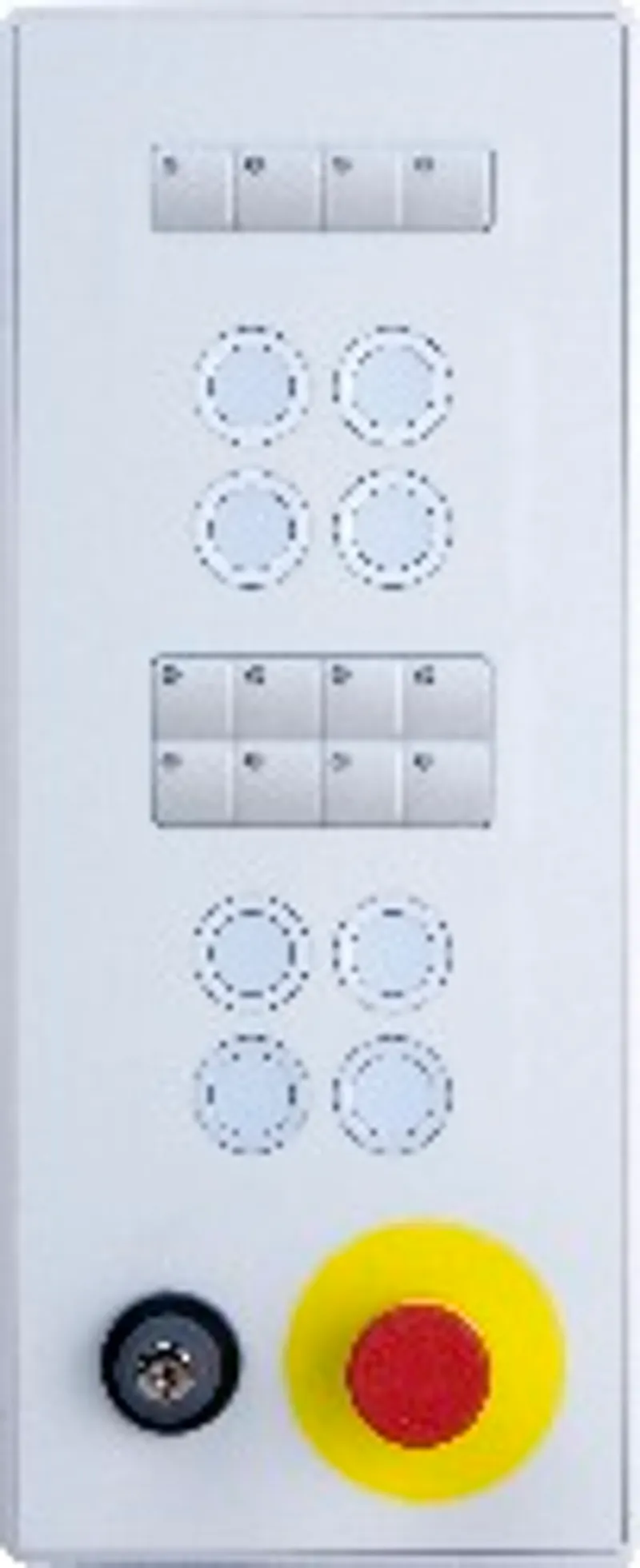

The keyboard expansion is equipped with 12 function keys, 8 illuminated ring keys, 1 E-stop and 1 key switch and can be mounted on the left side of the Automation Panel 800.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	No

Keys

LED luminous intensity – yellow	Typ. 60 mcd
LED luminous intensity – Red	Typ. 54 mcd
LED luminous intensity – green	Typ. 35 mcd
Function keys	12 with LED (yellow)
Soft keys	No
System keys	No
Illuminated ring keys	8
Emergency switch-off	2 normally closed contacts, right position
Key switch	1 normally open contact, left position

Electrical properties

Power consumption	Max. 7 W
Emergency switch-off circuit loop resistance	Max. 5.5 Ω

Operating conditions

Degree of protection per EN 60529

All sides: IP65, protected against dust and hose-directed water

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 60°C
Temperature – Transport	-25 to 60°C
Vibration – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Housing – Material	Aluminum (ADC12)
Housing – Coating	Similar to silver metallic (semi-flat)
Front – Light background color	Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Color slide-in labels	Similar to Pantone white on Pantone 429CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	135 mm
Dimensions – Height	330 mm
Dimensions – Depth	34.9 mm
Weight	1100 g

Accessories

Optional accessories (1)

5AC800.EXTX-02

Accessories — Slide-in label template for Automation Panel 800 extension units 5AC800.EXT3-04 and 5AC800.EXT3-05, for 2 devices.
