B&R 5AC800.EXT1-00

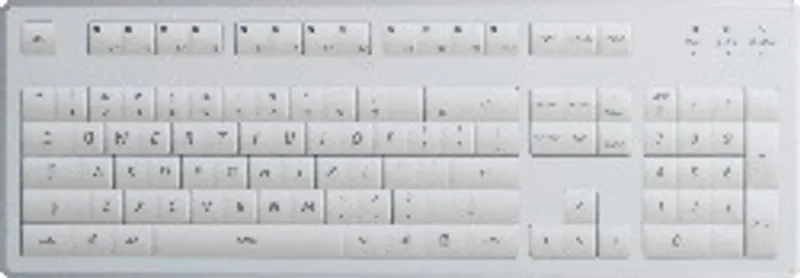

AP800 keypad extension (bottom)

MPN: 5AC800.EXT1-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC800.EXT1-00?

AP800 keypad extension (bottom)

Alphanumeric Windows keyboard

US International keyboard layout

USB 1.1 interface

IP65 protection

This keypad extension for the Automation Panel 800 is equipped with an integrated USB port and provides IP65 protection.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	3

Interfaces

USB – Quantity	1
USB – Type	USB 1.1
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA

Keys

LED luminous intensity – yellow	60 mcd
LED luminous intensity – green	35 mcd
Function keys	No
Soft keys	No
System keys	Alphanumeric keys, numeric keys, cursor block
Emergency switch-off	No
Key switch	No

Electrical properties

Power consumption	Max. 4 W
Emergency switch-off circuit loop resistance	Max. 1 Ω

Operating conditions

Degree of protection per EN 60529

All sides: IP65, protected against dust and hose-directed water

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 60°C
Temperature – Transport	-25 to 60°C
Vibration – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Housing – Material	Aluminum (ADC12)
Housing – Coating	Similar to silver metallic (semi-flat)
Front – Light background color	Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	426 mm
Dimensions – Height	146.8 mm
Dimensions – Depth	34.9 mm
Installation	Designed for installation under an Automation Panel 800 display
Weight	1600 g
