B&R 5AC800.EXT2-01

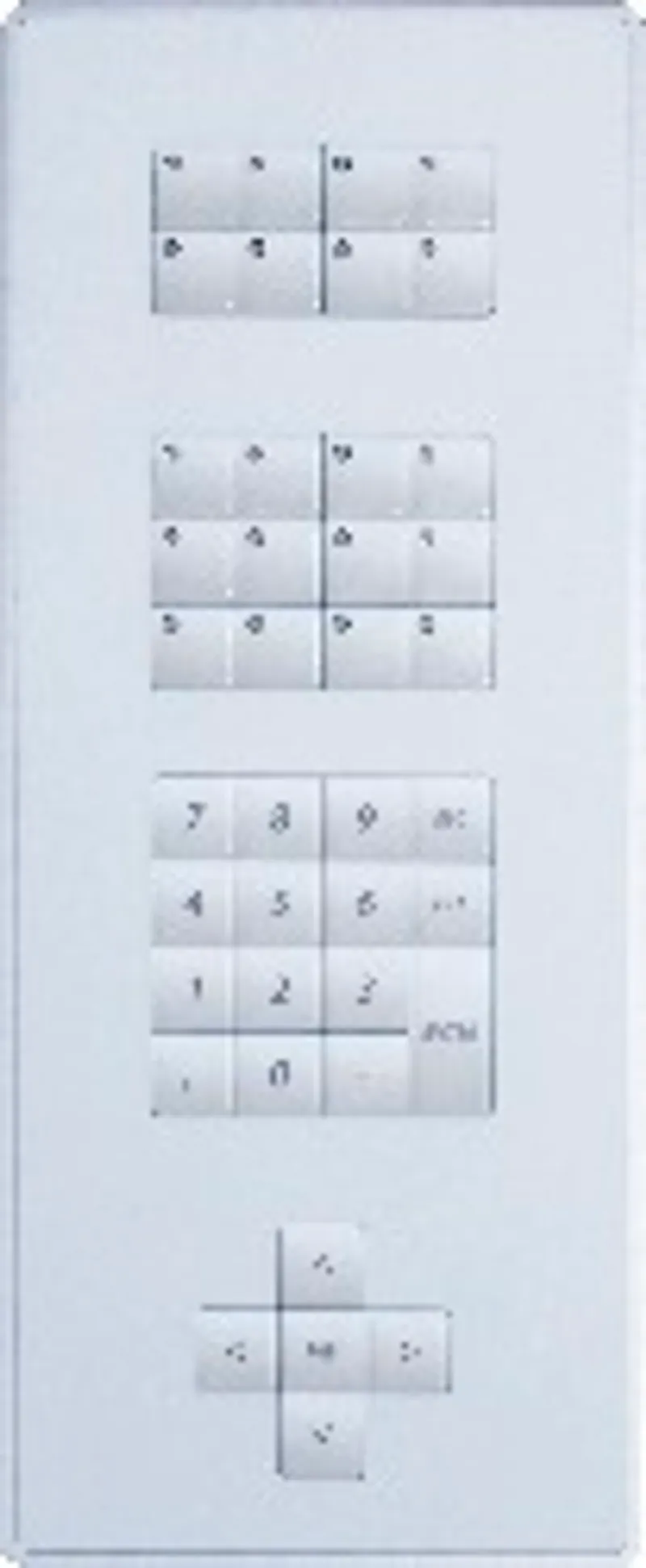

AP800 keypad extension (right)20 function keys20 system…

MPN: 5AC800.EXT2-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC800.EXT2-01?

AP800 keypad extension (right)

20 function keys

20 system keys

IP65 protection

The keyboard expansion is equipped with 20 function keys and 20 system keys and can be mounted on the right side of the Automation Panel 800.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	No

Keys

LED luminous intensity – yellow	60 mcd
Function keys	20 with LED (yellow)
Soft keys	No
System keys	Numeric keys, cursor block
Illuminated ring keys	No
Emergency switch-off	No
Key switch	No

Electrical properties

Power consumption	Max. 1 W
Emergency switch-off circuit loop resistance	Max. 1 Ω

Operating conditions

Degree of protection per EN 60529

All sides: IP65, protected against dust and hose-directed water

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 60°C
Temperature – Transport	-25 to 60°C
Vibration – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Housing – Material	Aluminum (ADC12)
Housing – Coating	Similar to silver metallic (semi-flat)
Front – Light background color	Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Color slide-in labels	Similar to Pantone white on Pantone 429CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	135 mm
Dimensions – Height	330 mm
Dimensions – Depth	34.9 mm
Weight	1100 g

Accessories

Optional accessories (1)

5AC800.EXTX-00

Accessories — Slide-in label template for Automation Panel 800 extension units 5AC800.EXT2-00 and 5AC800.EXT2-01, for 3 devices.
