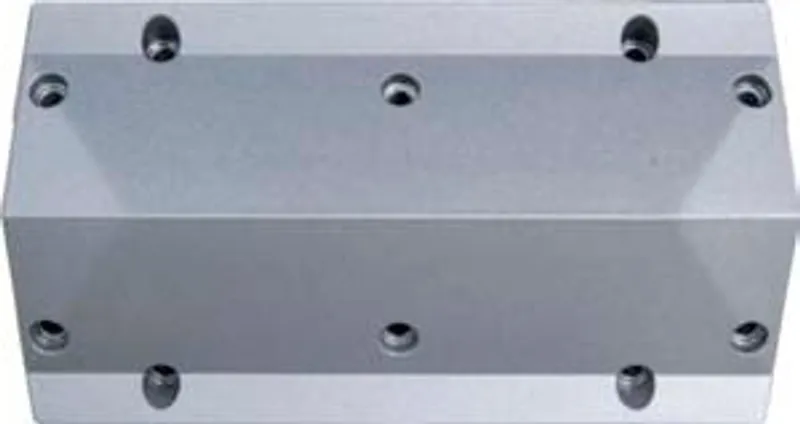

B&R 5AC800.CON2-00
This extension connector (60° design) is required to…
- MPN
- 5AC800.CON2-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5AC800.CON2-00?
This extension connector (60° design) is required to connect AP800 displays and extension units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
Electrical properties
| Emergency switch-off circuit loop resistance | Max. 1 Ω |
Mechanical properties
| Housing – Material | Aluminum (ADC12) |
| Housing – Coating | Similar to silver metallic (semi-flat) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 68.4 mm |
| Dimensions – Length | 185 mm |
| Dimensions – Height | 25 mm |
| Weight | 500 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AC800.CON2-00: frequently asked questions
When can 5AC800.CON2-00 be shipped?
5AC800.CON2-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC800.CON2-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC800.CON2-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC800.CON2-00, subject to availability and destination.
