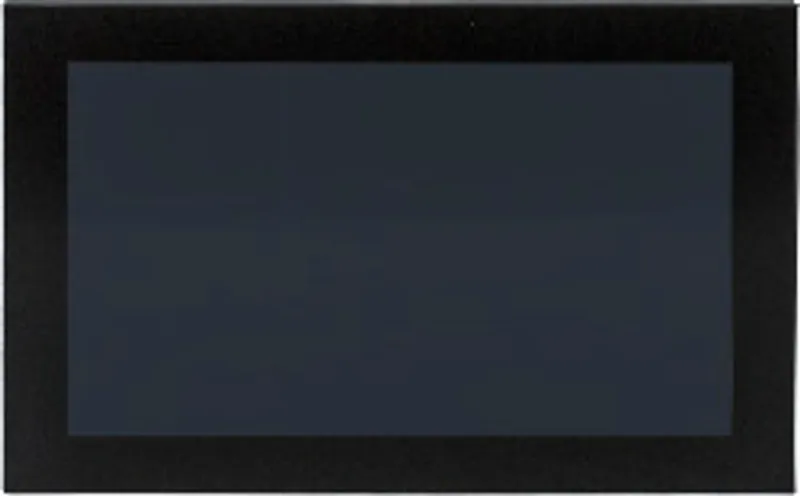

B&R 5AP1130.156C-001

Name: B&R 5AP1130.156C-001
Brand: B&R
SKU: 5AP1130.156C-001

MPN: 5AP1130.156C-001 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Panels
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 5AP1130.156C-001 be shipped?

5AP1130.156C-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5AP1130.156C-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5AP1130.156C-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1130.156C-001, subject to availability and destination.

Automation Panel 15.6" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - Optical bonding - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules

Specifications

B&R ID code	0x28B5
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E115267Industrial control equipment
HazLoc	cULus HazLoc E180196Industrial control equipmentfor hazardous locations Class I, Division 2, Groups ABCD, T4
Type	LED
Diagonal	15.6"
Colors	16.7 million
Resolution	FHD, 1920 x 1080 pixels
Contrast	Rev. D0 and later: 800:1Up to Rev. C0: 1500:1
Horizontal	Direction R = 85° / Direction L = 85°
Vertical	Direction U = 85° / Direction D = 85°
Brightness (dimmable)	Rev. D0 and later: Typ. 40 to 450 cd/m²Up to Rev. C0: Typ. 40 to 400 cd/m²
Half-brightness time	Rev. D0 and later: ≥50,000 hUp to rev. C0: 70,000 h
Technology	Projected capacitive touch (PCT)
Transmittance	See "Appendix A - Touch screen".
Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only
Frame	Aluminum, coated
Design	Black
Gasket	3 mm fixed gasket
Width	414 mm
Height	258.5 mm
Weight	Rev. D0 and later: Approx. 3,905 gUp to rev. C0: Approx. 3,800 g
