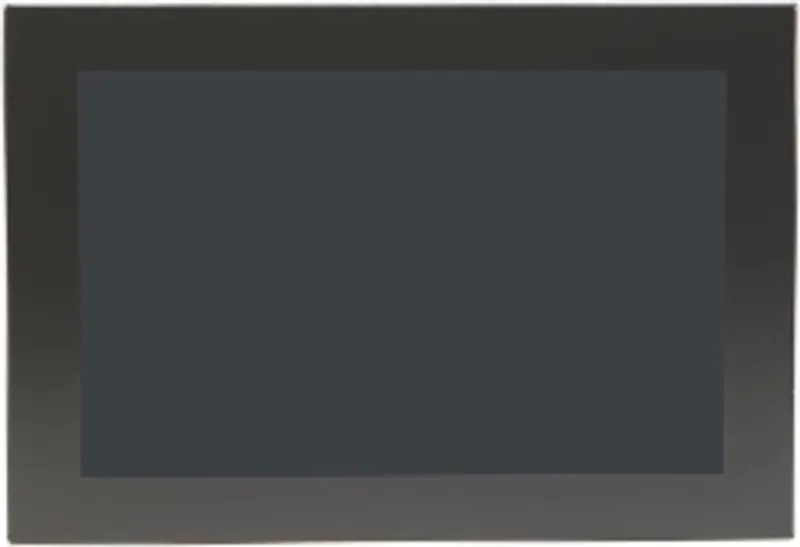

B&R 5AP1130.121E-000

Automation Panel 12.1" WXGA TFT, 1280 x 800 pixels (16:10)

MPN: 5AP1130.121E-000
Category: Panels

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AP1130.121E-000?

Automation Panel 12.1" WXGA TFT - 1280 x 800 pixels (16:10) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC2100 / PPC3x00 / PPC2200 / link modules

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xEB63

Display

Viewing angles – Horizontal	Direction R = 80° / Direction L = 80°
Viewing angles – Vertical	Direction U = 65° / Direction D = 80°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 40 to 400 cd/m²
Backlight – Half-brightness time	50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screenMulti-touch drivers" in chapter 4 "Software"."> – Technology	Projected capacitive touch (PCT) (note: The specifications for the touch screen driver must be taken into account. See section)
Touch screenMulti-touch drivers" in chapter 4 "Software"."> – Transmittance	Approx. 88% (note: The specifications for the touch screen driver must be taken into account. See section)
Type	TFT color
Diagonal	12.1"
Colors	16.7 million
Resolution	WXGA, 1280 x 800 pixels
Contrast	900:1

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65; Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Front – Frame	Aluminum, coated (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Black (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	324 mm
Dimensions – Height	221.5 mm
Weight	2400 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 5AP1130.121E-000ZIP · 1,000 KB · 1.00 (01/30/2017)
