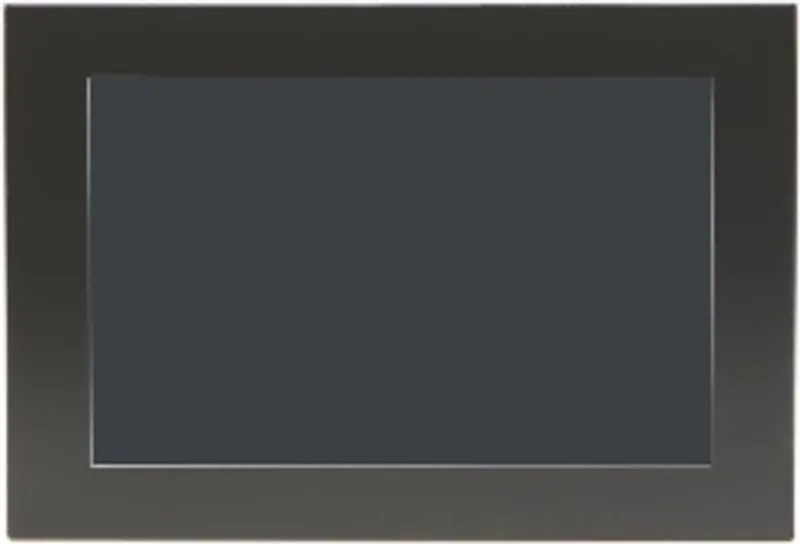

B&R 5AP1130.101E-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2000 kg |
Shipping & availability
When can 5AP1130.101E-000 be shipped?
5AP1130.101E-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP1130.101E-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP1130.101E-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1130.101E-000, subject to availability and destination.
Automation Panel 10.1" WXGA TFT - 1280 x 800 pixels (16:10) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC2100 / PPC3x00 / PPC2200 / link modules
Specifications
Specifications
| B&R ID code | 0xEB62 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267Industrial control equipment |
| HazLoc | cULus HazLoc E180196Industrial control equipmentfor hazardous locations Class I, Division 2, Groups ABCD, T4 |
| DNV | Temperature: B (0 to 55°C)Humidity: B (up to 100%)Vibration: A (0.7 g)EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV3 |
| KR | Yes |
| ABS | Yes |
| BV | EC31BTemperature: 5 - 55°CVibration: 0.7 gEMC: Bridge and open deck |
| Type | LED |
| Diagonal | 10.1" |
| Colors | 16.7 million |
| Resolution | WXGA, 1280 x 800 pixels |
| Contrast | Starting with hardware revision I0: 700:1Up to hardware revision H0: 1000:1 |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Brightness (dimmable) | Starting with hardware revision I0: Typ 25 to 1000 cd/m²Up to hardware revision H0: Typ. 25 to 500 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Projected capacitive touch (PCT) |
| Transmittance | See "Appendix A - Touch screen". |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Frame | Aluminum, coated |
| Design | Black |
| Gasket | 3 mm fixed gasket |
| Width | 279 mm |
| Height | 191 mm |
| Weight | 2000 g |
