B&R 5AP1130.156C-000

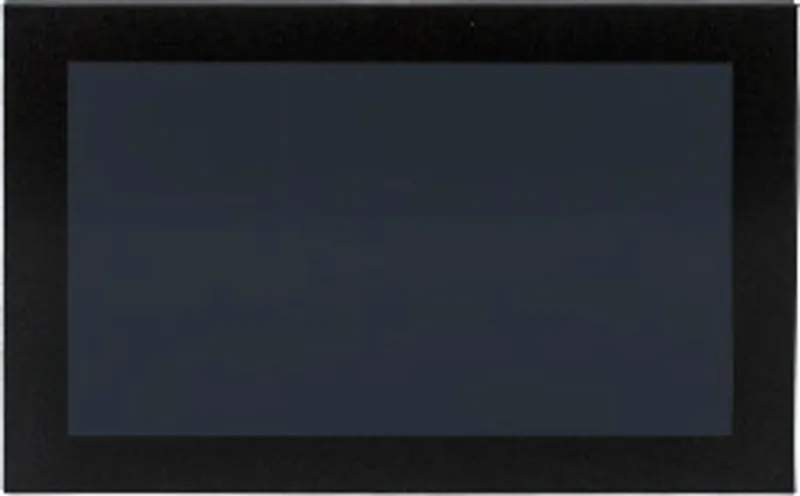

Automation Panel 15.6" Full HD TFT

MPN: 5AP1130.156C-000
Category: Panels

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AP1130.156C-000?

Automation Panel 15.6" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xEC5D

Display

Viewing angles – Horizontal	Direction R = 85° / Direction L = 85°
Viewing angles – Vertical	Direction U = 85° / Direction D = 85°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 40 to 450 cd/m²
Backlight – Half-brightness time	≥50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screenMulti-touch drivers" in chapter 4 "Software"."> – Technology	Projected capacitive touch (PCT) (note: The specifications for the touch screen driver must be taken into account. See section)
Touch screenMulti-touch drivers" in chapter 4 "Software"."> – Transmittance	Approx. 88% (note: The specifications for the touch screen driver must be taken into account. See section)
Type	TFT color
Diagonal	15.6"
Colors	16.7 million
Resolution	FHD, 1920 x 1080 pixels
Contrast	800:1

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65; Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Front – Frame	Aluminum, coated (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Black (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	414 mm
Dimensions – Height	258.5 mm
Weight	3800 g
