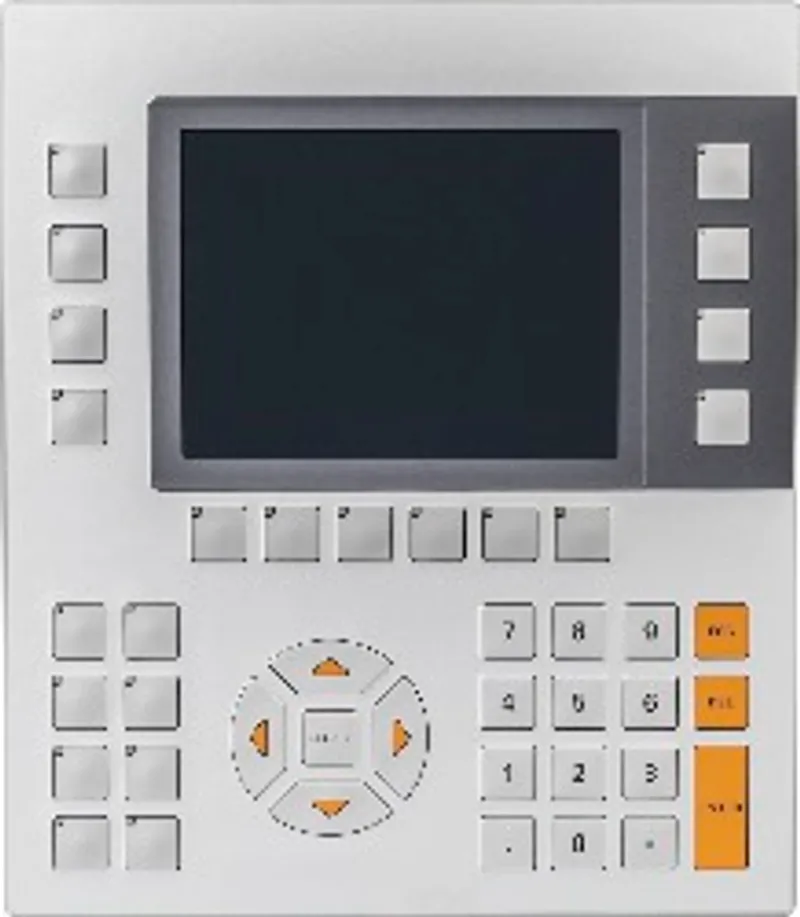

B&R 5AP1151.0573-000

Panel for AP1000, PPC2100 or PPC2200; 5.7" TFT VGA color display; 22 function keys and 20 system keys

MPN: 5AP1151.0573-000
Category: Panels

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AP1151.0573-000?

Panel for AP1000, PPC2100 or PPC2200

5.7" TFT VGA color display

22 function keys and 20 system keys

Control cabinet installation

Automation Panel 5.7" VGA TFT - 640 x 480 pixels (4:3) - Control cabinet installation - Portrait format - 22 function keys and 20 system keys - For PPC2x00 / link modules - Compatible with 5PP551.0573-00

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xE7AB

Display

Viewing angles – Horizontal	Direction R = 80° / Direction L = 80°
Viewing angles – Vertical	Direction U = 70° / Direction D = 70°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 22.5 to 450 cd/m²
Backlight – Half-brightness time	50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Type	TFT color
Diagonal	5.7"
Colors	262,144
Resolution	VGA, 640 x 480 pixels
Contrast	800:1

Keys

LED luminous intensity – yellow	Typ. 38 mcd
Function keys	22 with LED (yellow)
System keys	Numeric keys, cursor block
Service life	>1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65; Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Front – Material	Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Light background color	RAL 9006 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Dark border color around display	RAL 7024 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	212 mm
Dimensions – Height	245 mm
Weight	1400 g
