B&R 5AP1180.1505-000

Panel for AP1000, PPC900, PPC2100

MPN: 5AP1180.1505-000
Category: Panels

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AP1180.1505-000?

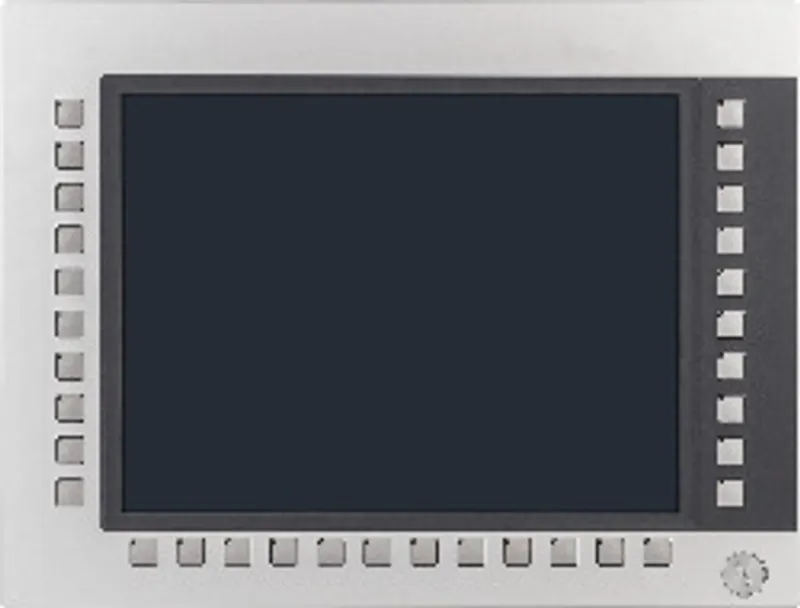

Panel for AP1000, PPC900, PPC2100, PPC2200 or PPC310015.0" TFT XGA color displaySingle-touch (analog resistive)32 function keysFront USB interfaceControl cabinet installation

Automation Panel 15.0" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - Front USB - 32 function keys - For PPC900/PPC2100/PPC3x00/PPC2200 - For link modules - Compatible with 5PP580.1505-00, 5AP980.1505-01

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xE7BD

Display

Viewing angles – Horizontal	Direction R = 80° / Direction L = 80°
Viewing angles – Vertical	Direction U = 70° / Direction D = 70°
Backlight – Type	LED
Backlight – Brightness (dimmable)	Typ. 20 to 400 cd/m²
Backlight – Half-brightness time	50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screen – Technology	Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Controller	B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Touch screen – Transmittance	81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).)
Type	TFT color
Diagonal	15.0"
Colors	16.7 million
Resolution	XGA, 1024 x 768 pixels
Contrast	700:1

Interfaces

USB – Quantity	1
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA

Keys

LED luminous intensity – yellow	Typ. 38 mcd
Function keys	32 with LED (yellow)
System keys	No
Service life	>1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65; Back: IP20 (only with installed link module or installed system unit)
Degree of protection per UL 50	Front: Type 4X indoor use only

Mechanical properties

Front – Material	Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Light background color	RAL 9006 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Dark border color around display	RAL 7024 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	435 mm
Dimensions – Height	330 mm
Weight	4900 g
