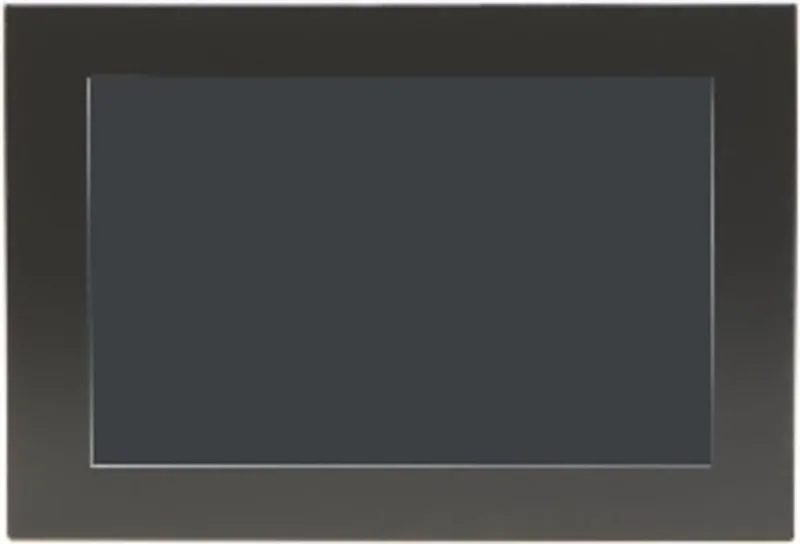

B&R 5AP1130.101D-000
Automation Panel 10.1" High Resolution
- MPN
- 5AP1130.101D-000
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP1130.101D-000?
Automation Panel 10.1" High Resolution - 1920 x 1200 pixels (16:10) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC2100/PPC3x00/PPC2200 - For link modules
Specifications
Specifications
| B&R ID code | 0x27AD |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267Industrial control equipment |
| HazLoc | In preparation |
| Type | LED |
| Diagonal | 10.1" |
| Colors | 16.7 million |
| Resolution | WUXGA, 1920 x 1200 pixels |
| Contrast | 800:1 |
| Air bonding | Yes |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Brightness (dimmable) | Typ. 80 to 800 cd/m² |
| Half-brightness time | 40,000 h |
| Technology | Projected capacitive touch (PCT) |
| Transmittance | See "Appendix A - Touch screen". |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Frame | Aluminum, coated |
| Design | Black |
| Gasket | 3 mm fixed gasket |
| Width | 279 mm |
| Height | 191 mm |
| Weight | Approx. 2000 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP1130.101D-000: frequently asked questions
When can 5AP1130.101D-000 be shipped?
5AP1130.101D-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP1130.101D-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP1130.101D-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1130.101D-000, subject to availability and destination.
