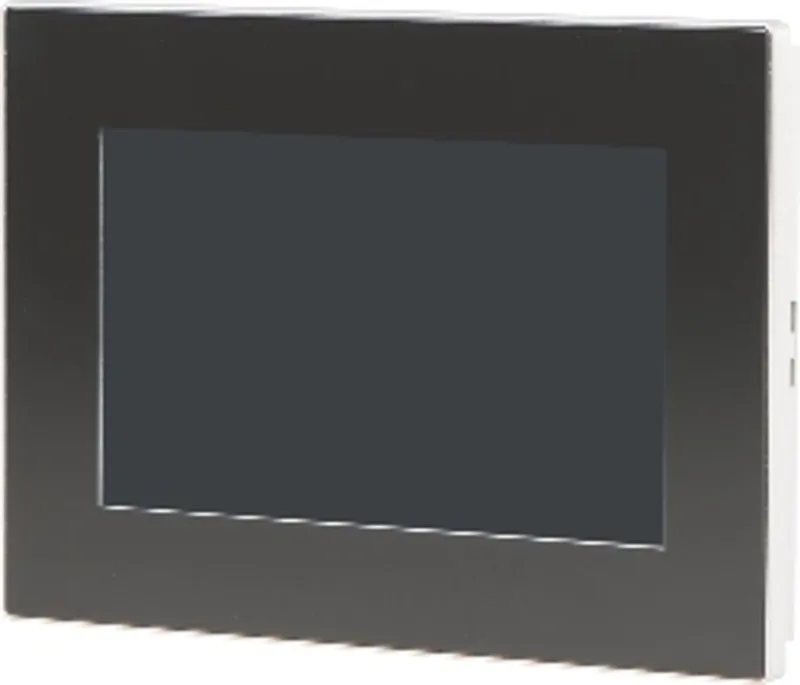

B&R 5AP1130.0702-000
Automation Panel 7.0" WVGA TFT, 800 x 480 pixels (16:10)
- MPN
- 5AP1130.0702-000
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP1130.0702-000?
Automation Panel 7.0" WVGA TFT - 800 x 480 pixels (16:10) - Multi-touch (projected capacitive) - Control cabinet installation - Landscape format - For PPC2100 / PPC2200 / link modules - Compatible with 5PP520.0702-00
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| B&R ID code | 0xEB61 |
Display
| Viewing angles – Horizontal | Direction R = 89° / Direction L = 89° |
| Viewing angles – Vertical | Direction U = 89° / Direction D = 89° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 50 to 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screenSoftware", section 2 "Multi-touch drivers"."> – Technology | Projected capacitive touch (PCT) (note: The specifications for the touch screen driver must be taken into account. See chapter 4) |
| Touch screenSoftware", section 2 "Multi-touch drivers"."> – Transmittance | Approx. 88% (note: The specifications for the touch screen driver must be taken into account. See chapter 4) |
| Type | TFT color |
| Diagonal | 7.0" |
| Colors | 16.7 million |
| Resolution | WVGA, 800 x 480 pixels |
| Contrast | 700:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65; Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Front – Frame | Aluminum, coated (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Black (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | 3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 209 mm |
| Dimensions – Height | 153 mm |
| Weight | 1200 g |
