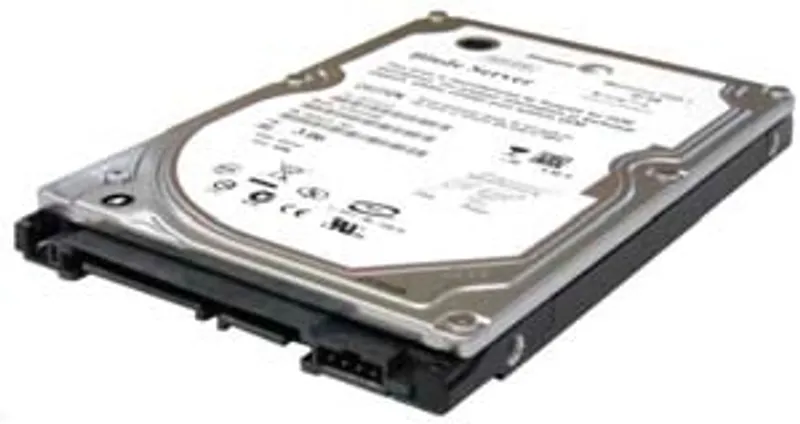

B&R 5ACPCI.RAIC-04
This hard disk can be as a replacement for a HDD …
- MPN
- 5ACPCI.RAIC-04
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5ACPCI.RAIC-04?
This hard disk can be used as a replacement for a HDD used with the 5ACPCI.RAIC-03 PCI SATA RAID controller.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
Hard disk
| Data transfer rate – Internal | Max. 84.6 Mbit/s |
| Data transfer rate – To/From host | Max. 150 MB/s |
| Positioning time – Minimum (track to track) | 1.5 ms |
| Positioning time – Nominal (read access) | 12 ms |
| Positioning time – Maximum (read access) | 22 ms |
| Capacity | 160 GB |
| Number of heads | 3 |
| Number of sectors | 312,581,808 |
| Bytes per sector | 512 |
| Cache | 8 MB |
| Speed | 5400 rpm ±1% |
| Startup time | Typ. 4 s (from 0 rpm to read access) |
| Service life | 5 years |
| S.M.A.R.T. support | Yes |
| Access time | 5.56 ms |
| Supported transfer modes | SATA 1.0, PIO mode 0-4, multiword DMA mode 0-2, UDMA 0-5 |
Electrical properties
| Power consumption | 0.3 A at 3.3 V (PCI bus) ; 1 A at 5 V (PCI bus) |
Ambient conditions
| Temperature – Operation | -15 to 80°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.) |
| Temperature – 24-hour operation | -15 to 80°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.) |
| Temperature – Storage | -40 to 95°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.) |
| Temperature – Transport | -40 to 95°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.) |
| Relative humidity – Operation | 8 to 90%, non-condensing (note: Maximum humidity at 29°C.) |
| Relative humidity – Storage | 5 to 95%, non-condensing (note: Maximum humidity at 40°C.) |
| Relative humidity – Transport | 5 to 95%, non-condensing (note: Maximum humidity at 40°C.) |
| Vibration – Operation (continuous) | 5 to 500 Hz: Max. 0.125 g, duration 1 octave per minute, no unrecoverable errors (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.) |
| Vibration – Operation (occasional) | 5 to 500 Hz: Max. 0.25 g, duration 1 octave per minute, no unrecoverable errors (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.) |
| Vibration – Storage | 5 to 500 Hz: Max. 5 g, duration 0.5 octaves per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.) |
| Vibration – Transport | 5 to 500 Hz: Max. 5 g, duration 0.5 octaves per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.) |
| Shock – Operation | Max. 125 g, 2 ms, no unrecoverable errors |
| Shock – Storage | Max. 400 g, 2 ms, no damage ; Max. 450 g, 1 ms, no damage ; Max. 200 g, 0.5 ms, no damage |
| Shock – Transport | Max. 400 g, 2 ms, no damage ; Max. 450 g, 1 ms, no damage ; Max. 200 g, 0.5 ms, no damage |
| Elevation – Operation | -300 to 3048 m |
| Elevation – Storage | -300 to 12192 m |
Mechanical properties
| Dimensions – Width | 70 mm |
| Dimensions – Length | 100 mm |
| Dimensions – Height | 9.5 mm |
| Weight | 350 g |
Vendor information
| Manufacturer | Fujitsu |
| Manufacturer's product ID | M120-ESW MHY2160BH-ESW |
