Mounting units Parts
Compare Mounting units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimensions – Width | Dimensions – Height | Dimensions – Depth | Installation | Weight |
|---|---|---|---|---|---|

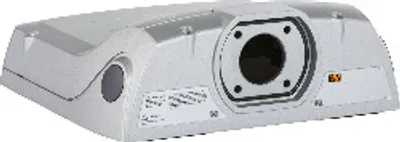

| 5ACCMA00.0000-000 | 280 mm | 259 mm | 96 mm | Swing arm (with flange) | 2500 g |
| 5ACCMA00.0001-000 | 280 mm | 259 mm | 96 mm | Swing arm (with flange) | 2500 g |

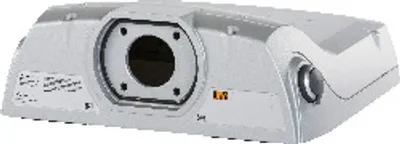

| 5ACCMA00.0002-000 | 280 mm | 259 mm | 96 mm | Swing arm (with flange) | 2500 g |

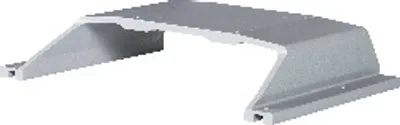

| 5ACCMA01.0100-000 | 270 mm | 189 mm | 51 mm | VESA | 900 g |

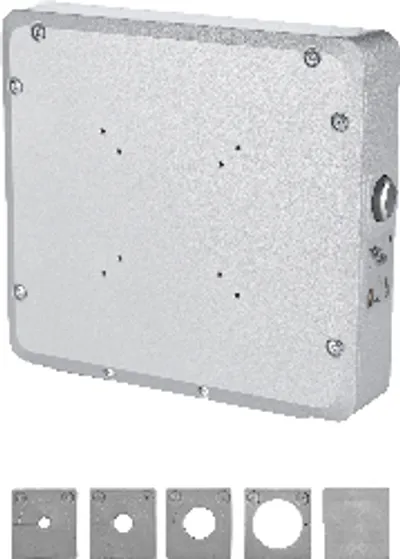

| 5ACCMA00.0101-000 | 280 mm | 60.25 mm | — | VESA | 2.6 kg |

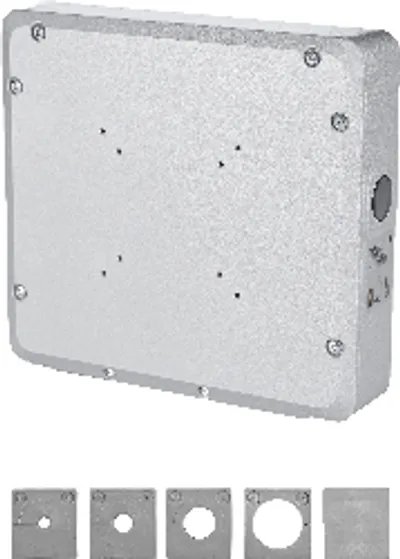

| 5ACCMA00.0100-000 | 280 mm | 60.25 mm | — | VESA | 2.6 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum (similar to RAL 9006) |
