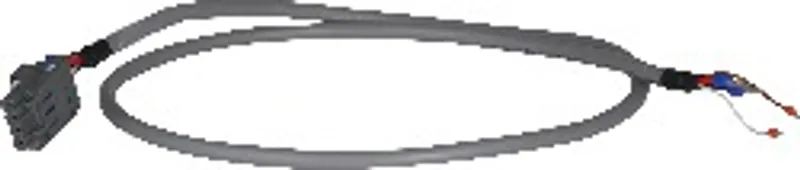

B&R 5CAUPS.0010-01

The UPS connection cable, which is 1 m long

MPN: 5CAUPS.0010-01
Category: Uninterruptible power supply

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5CAUPS.0010-01?

The UPS connection cable, which is 1 m long, establishes the connection between the UPS interface option and the battery unit.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)

Cable construction

Outer jacket – Material	Thermoplastic PVC-based material
Outer jacket – Color	Window gray (similar to RAL 7040)
Wire cross section	2x 0.5 mm 2 (20 AWG); 2x 2.5 mm 2 (13 AWG)
Conductor resistance	At 0.5 mm 2 max. 39 Ω/km; At 2.5 mm 2 max. 7.98 Ω/km (note: At an ambient temperature of 20°C.)

Connector

Type	4-pin screw clamp terminal block (note: Tightening torque: Min. 0.4 Nm, max. 0.5 Nm)

Electrical properties

Test voltage – Wire - Wire	1500 V
Operating voltage	Max. 30 VDC
Peak operating voltage	Typ. 30 VDC
Current-carrying capacity	10 A at 20°C

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Moving	-5 to 70°C
Temperature – Static	-30 to 70°C

Mechanical properties

Dimensions – Length	1 m
Dimensions – Diameter	7 mm
Bend radius – Moving	10x wire diameter
Bend radius – Fixed installation	5x wire diameter
Weight	Approx. 100 g
