B&R 5CAUPS.0030-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Uninterruptible power supply |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.25 kg |
Shipping & availability
When can 5CAUPS.0030-01 be shipped?
5CAUPS.0030-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CAUPS.0030-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CAUPS.0030-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CAUPS.0030-01, subject to availability and destination.

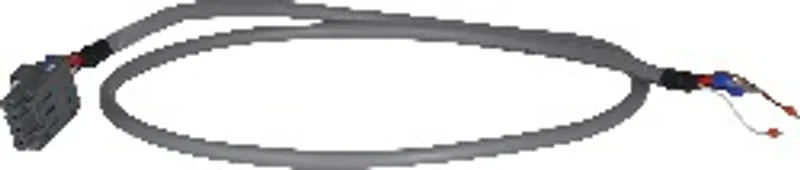

The UPS connection cable, which is 3 m long, establishes the connection between the UPS interface option and the battery unit.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| Wire cross section | 2x 0.5 mm2 (20 AWG) 2x 2.5 mm2 (13 AWG) |
| Conductor resistance | At 0.5 mm2 max. 39 Ω/km At 2.5 mm2 max. 7.98 Ω/km |
| Material | Thermoplastic PVC-based material |
| Color | Window gray (similar to RAL 7040) |
| Type | 4-pin screw clamp terminal block |
| Operating voltage | Max. 30 VDC |
| Peak operating voltage | Typ. 30 VDC |
| Wire - Wire | 1500 V |
| Current-carrying capacity | 10 A at 20°C |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Moving | 10x wire diameter |
| Static | -30 to 70°C |
| Length | 3 m |
| Diameter | 7 mm |
| Fixed installation | 5x wire diameter |
| Weight | Approx. 250 g |
